BACK DOOR GLASS ON-VEHICLE INSPECTION

PROCEDURE


  1. INSPECT GLASS BREAKAGE SENSOR (BACK DOOR GLASS) (w/o Rear No. 2 Seat)


    1. B005NVCC01
      *1

      Back Door Glass

      (View from inside the vehicle)
      *a

      Component without harness connected

      (Glass Breakage Sensor (Back Door Glass))

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      2 - 3 Always Below 1 Ω

      If the result is not as specified, replace the glass breakage sensor (back door glass).

  2. INSTALL GLASS BREAKAGE SENSOR (BACK DOOR GLASS) (w/ Rear No. 2 Seat)

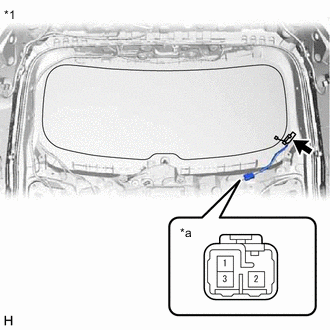

    1. B005LDSC03
      *1

      Back Door Glass

      (View from inside the vehicle)
      *a

      Component without harness connected

      (Glass Breakage Sensor (Back Door Glass))

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      2 - 3 Always Below 1 Ω

      If the result is not as specified, replace the glass breakage sensor (back door glass).
