ECM СНЯТИЕ


  1. PRECAUTION

    Note

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Click here.

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  3. REMOVE FRONT DOOR SCUFF PLATE RH

    Tech Tips

    Порядок выполнения работ такой же, как для левой стороны.

  4. REMOVE SEAT TRACK COVER LH


    1. B007Q5Y

      С помощью съемника фиксаторов освободите фиксатор.

    2. Расцепите захват и снимите щиток направляющей левого сиденья.

  5. REMOVE FRONT SEAT ASSEMBLY RH


    1. B007OW8

      Выдвиньте переднее сиденье в сборе до упора вперед.

    2. Выверните 2 болта с задней стороны сиденья.

    3. Сдвиньте переднее сиденье в сборе в крайнее заднее положение.

    4. Выверните 2 болта с передней стороны сиденья.

    5. Сдвиньте переднее сиденье в сборе к середине направляющей сиденья. Установите спинку сиденья в вертикальное положение.

    6. Отсоедините разъем замка ремня безопасности переднего сиденья.

    7. Снимите переднее сиденье в сборе.

  6. REMOVE ECM


    1. Fold back the floor carpet.

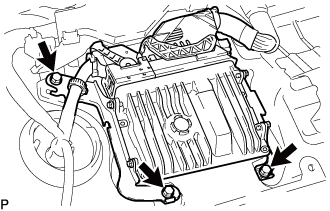

    2. B007T7K

      Remove the 3 bolts from the ECM.

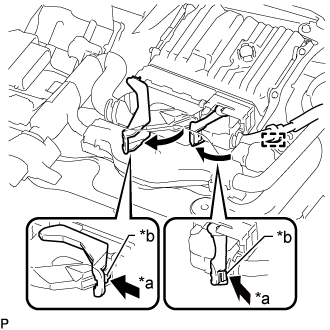

    3. B007VWIE01
      Text in Illustration
      *a Push
      *b Lock

      Raise the 2 levers while pushing the locks on the 2 levers, disconnect the 2 ECM connectors and remove the ECM.

      Note

      After disconnecting the ECM connector, make sure that dirt, water and other foreign matter does not contact the ECM connector.

    4. Detach the clamp.

  7. REMOVE NO. 1 ECM BRACKET

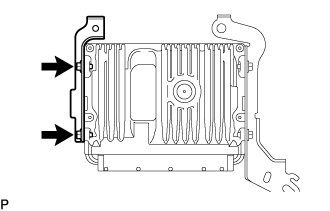

    1. B007QJZ

      Remove the 2 screws and No. 1 ECM bracket.

  8. REMOVE NO. 2 ECM BRACKET

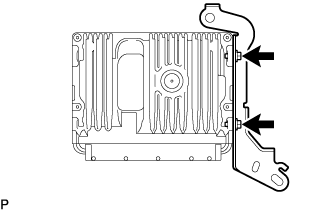

    1. B007PCV

      Remove the 2 screws and No. 2 ECM bracket.
