LIN COMMUNICATION SYSTEM, Diagnostic DTC:B2789

DTC Code DTC Name
B2789 No Response from ID BOX

DESCRIPTION

This DTC is stored when LIN communication between the certification ECU (smart key ECU assembly) and ID code box (immobiliser code ECU) stops for 10 seconds or more.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B2789

No Response from ID BOX

No communication between the certification ECU and ID code box for 10 seconds or more.

  • ID code box (immobiliser code ECU)

  • Certification ECU (smart key ECU assembly)

  • Harness or connector

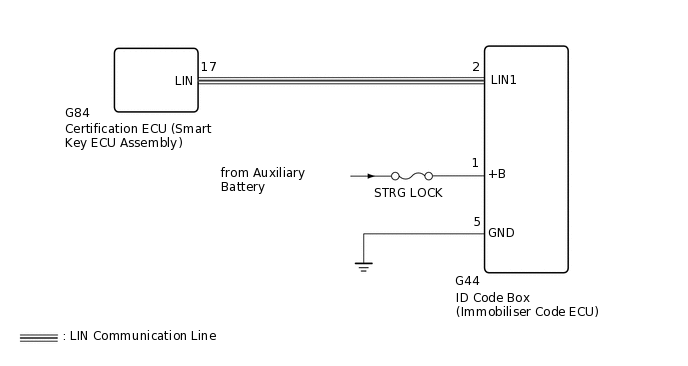

WIRING DIAGRAM

B339675E12

CAUTION / NOTICE / HINT

Note:

  • When using the GTS with the power switch off to troubleshoot:

    Connect the GTS to the vehicle, and turn a courtesy light switch on and off at 1.5 second intervals until communication between the GTS and vehicle begins.

  • Inspect the fuses for circuits related to this system before performing the following inspection procedure.

  • Before replacing the certification ECU (smart key ECU assembly) and ID code box (immobiliser code ECU), refer to the entry and start system.

    Click here

Tip:

When the communication between the ID code box (immobiliser code ECU) and certification ECU (smart key ECU assembly) stops, DTC B2785 is also stored.

PROCEDURE

  1. CLEAR DTC

    1. Clear the DTCs.

      Click here

      Body Electrical > Entry&Start > Clear DTCs

    Result

    Proceed to

    NEXT
    NEXT

  2. CHECK FOR DTC

    1. Check for DTCs.

      Click here

      Body Electrical > Entry&Start > Trouble Codes

    Result

    Proceed to

    DTC B2789 is output

    DTC B2789 is not output
    DTC B2789 is not output

    USE SIMULATION METHOD TO CHECK

    DTC B2789 is output

  3. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU [SMART KEY ECU ASSEMBLY - ID CODE BOX [IMMOBILISER CODE ECU])

    1. Disconnect the G84 certification ECU (smart key ECU assembly) connector.

    2. Disconnect the G44 ID code box (immobiliser code ECU) connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      G84-17 (LIN) - G44-2 (LIN1)

      Always

      Below 1 Ω

      G84-17 (LIN) - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  4. CHECK HARNESS AND CONNECTOR (ID CODE BOX [IMMOBILISER CODE ECU] - BATTERY AND BODY GROUND)

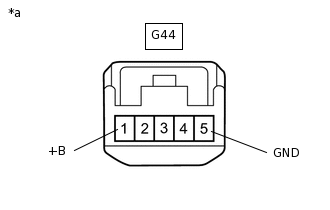

    1. B301231C02

      *a

      Front view of wire harness connector

      (to ID Code Box [Immobiliser Code ECU])

      Disconnect the ID code box (immobiliser code ECU) connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      G44-5 (GND) - Body ground

      Always

      Below 1 Ω

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection

      Switch Condition

      Specified Condition

      G44-1 (+B) - Body ground

      Power switch off

      11 to 14 V

    Result

    Proceed to

    OK

    NG
    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  5. REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

    1. Temporarily replace the certification ECU (smart key ECU assembly) with a new or normally functioning one.

    Result

    Proceed to

    NEXT
    NEXT

  6. CHECK FOR DTC

    1. Check for DTCs.

      Click here

      Body Electrical > Entry&Start > Trouble Codes

    Result

    Proceed to

    DTC B2789 is not output

    DTC B2789 is output
    DTC B2789 is not output

    END (CERTIFICATION ECU [SMART KEY ECU ASSEMBLY] IS DEFECTIVE)

    DTC B2789 is output

    REPLACE ID CODE BOX (IMMOBILISER CODE ECU)
