LUBRICATION SYSTEM


  1. CONSTRUCTION


    1. Oil nozzle sub-assemblies are provided on the left side of the cylinder block for cooling and lubricating the pistons.

    2. The oil nozzle sub-assemblies contain a check ball to prevent oil from being fed when the oil pressure is low. This prevents the overall oil pressure in the engine from dropping.

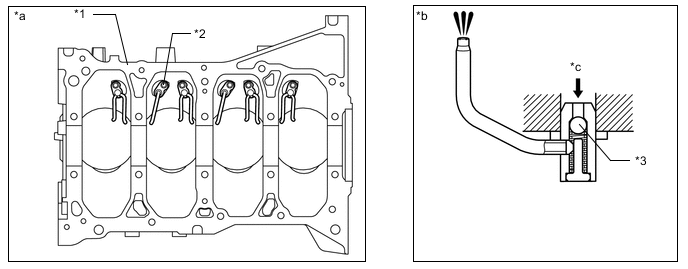

      B0023OQC01
      *1 Cylinder Block Sub-assembly *2 Oil Nozzle Sub-assembly
      *3 Check Ball - -
      *a View from Bottom Side *b Oil Nozzle Sub-assembly Cross Section
      *c Oil - -
