MIRROR SYSTEM

A004GY2E02

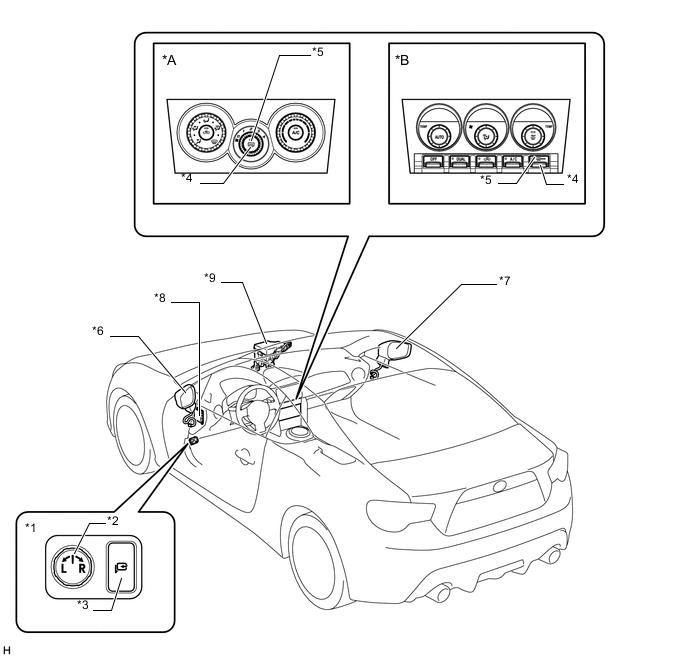

Text in Illustration
*A Models with Manual Air Conditioning *B Models with Automatic Air Conditioning
*1 Outer Mirror Switch Assembly *2 Right/Left Selector and Mirror Surface Angle Adjustment Switch
*3 Retraction/Restoration Switch *4 Rear Window Defogger Switch
*5 Operating Status Indicator Light *6

  • Outer Rear View Mirror Assembly LH


    • Door Mirror Retraction/Restoration Motor LH

    • Door Mirror Surface Vertical Adjustment Motor LH

    • Door Mirror Surface Horizontal Adjustment Motor LH

    • Mirror Heater
*7

  • Outer Rear View Mirror Assembly RH


    • Door Mirror Retraction/Restoration Motor RH

    • Door Mirror Surface Vertical Adjustment Motor RH

    • Door Mirror Surface Horizontal Adjustment Motor RH

    • Mirror Heater

 *8 Main Body ECU (Network Gateway ECU)
*9

  • Engine Room Relay Block


    • Rear Window Defogger Relay

    • Mirror Heater Relay

 - -
