DYNAMIC TORQUE CONTROL AWD SYSTEM

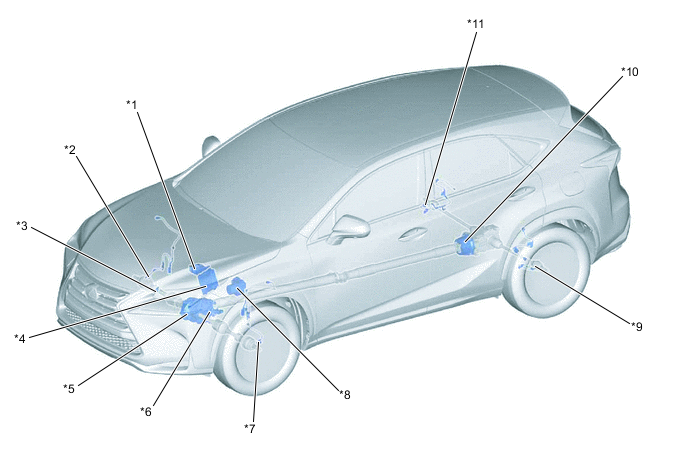

| *1 | Throttle Body Assembly
|
*2 | Front Speed Sensor RH |
| *3 | Crank Position Sensor Assembly | *4 | ECM |
| *5 | Transfer | *6 | Park/Neutral Position Switch Assembly |
| *7 | Front Speed Sensor LH | *8 | Brake Actuator Assembly
|
| *9 | Rear Speed Sensor LH | *10 | Transmission Coupling Assembly |
| *11 | Rear Speed Sensor RH | - | - |

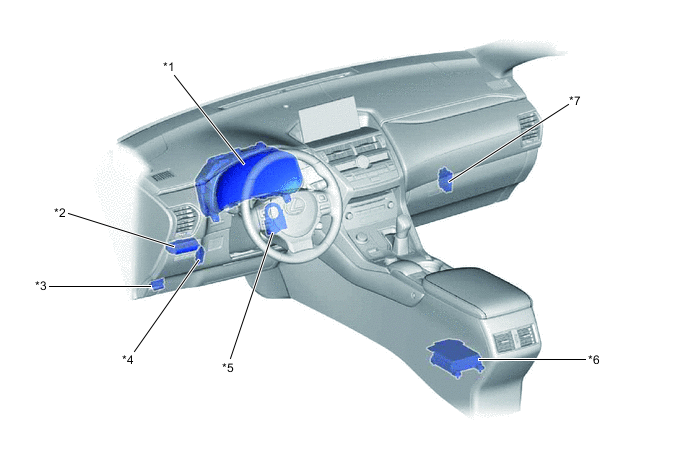

| *1 | Combination Meter Assembly
|
*2 | Combination Switch Assembly
|
| *3 | DLC3 | *4 | Stop Light Switch Assembly |
| *5 | Steering Sensor | *6 | Airbag ECU Assembly
|
| *7 | 4WD ECU Assembly | - | - |
