OIL PUMP REMOVAL

CAUTION / NOTICE / HINT

Note:

Do not remove the oil pump and oil pump relief valve from the timing chain cover assembly.

PROCEDURE

  1. REMOVE ENGINE AND TRANSAXLE

    Click here

  2. REMOVE ENGINE WIRE

    Click here

  3. REMOVE IGNITION COIL ASSEMBLY

    Click here

  4. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

    Click here

  5. REMOVE CRANKSHAFT POSITION SENSOR

    Click here

  6. REMOVE CRANKSHAFT PULLEY

    Click here

  7. REMOVE ENGINE MOUNTING BRACKET RH

    Click here

  8. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

    Click hereClick here

  9. REMOVE TIMING CHAIN COVER ASSEMBLY

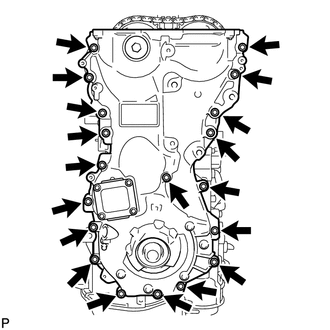

    1. A235204

      Remove the 2 nuts and 17 bolts from the timing chain cover assembly.

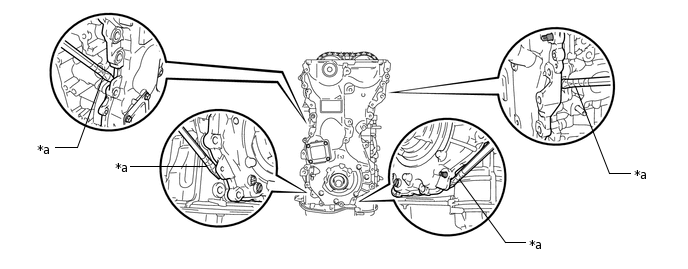

    2. Using a screwdriver wrapped in protective tape, remove the timing chain cover assembly by prying the points in the illustration.

      A283977C05

      *a

      Protective Tape

      -

      -
      Note:

      Do not damage the contacting surfaces of the timing chain cover assembly, camshaft housing sub-assembly, cylinder head sub-assembly, stiffening crankcase assembly and cylinder block.

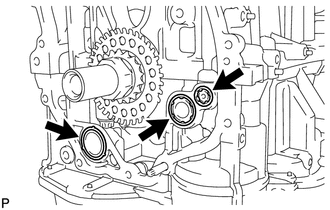

    3. A196858

      Remove the 3 gaskets from the stiffening crankcase assembly.

  10. REMOVE TIMING CHAIN COVER OIL SEAL

    Click here
