REAR POWER OUTLET SOCKET REMOVAL

PROCEDURE

  1. REMOVE REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)

    1. Remove the rear No. 2 seat assembly (Click here).

  2. REMOVE REAR NO. 1 FLOOR STEP COVER (w/ Rear No. 2 Seat)

    Click hereClick here

  3. REMOVE QUARTER SCUFF PLATE RH (w/ Rear No. 2 Seat)

    Click hereClick here

  4. REMOVE REAR DOOR SCUFF PLATE RH

    Click hereClick here

  5. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    Click hereClick here

  6. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Click hereClick here

  7. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (w/o Rear No. 2 Seat)

    Click hereClick here

  8. REMOVE NO. 1 DECK BOARD SUB-ASSEMBLY (w/o Rear No. 2 Seat)

    Click hereClick here

  9. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE (w/o Rear No. 2 Seat)

    Click hereClick here

  10. REMOVE REAR FLOOR CARPET ASSEMBLY (w/o Rear No. 2 Seat)

    Click hereClick here

  11. REMOVE REAR NO. 1 SEAT OUTER LAP BELT ANCHOR COVER

    Click hereClick here

  12. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Click hereClick here

  13. REMOVE NO. 1 TONNEAU COVER HOLDER CAP (w/o Tonneau Cover)

    Click hereClick here

  14. REMOVE FRONT DECK SIDE TRIM COVER (w/ Tonneau Cover)

    Click hereClick here

  15. REMOVE ASSIST GRIP PLUG (w/ Rear No. 2 Seat)

    Click hereClick here

  16. REMOVE ASSIST GRIP SUB-ASSEMBLY (w/ Rear No. 2 Seat)

    Click hereClick here

  17. REMOVE REAR SEATBACK LOCK CONTROL LEVER BASE RH (w/o Rear No. 2 Seat)

    Click here

  18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    Click hereClick here

  19. REMOVE POWER OUTLET SOCKET ASSEMBLY

    1. B249577

      w/ Rear No. 2 Seat, w/o Rear No. 2 Seat:

      1. Detach the 4 claws and remove the power outlet socket.

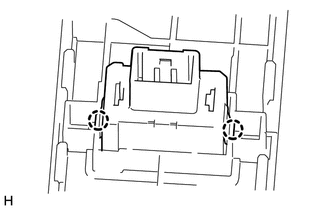

    2. B323861

      w/ Rear Air Duct:

      1. Detach the 2 claws and remove the power outlet socket.
