REAR AIRBAG SENSOR REMOVAL

CAUTION / NOTICE / HINT

PROCEDURE

1. PRECAUTION

   CAUTION:

   Be sure to read Precaution thoroughly before servicing Click here.

   Note

   After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work Click here.

2. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

   Click here

3. REMOVE REAR NO. 2 SEAT ASSEMBLY

   Click here

4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

   CAUTION:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

   Note

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

5. REMOVE BACK DOOR SCUFF PLATE

   Click here

6. REMOVE REAR DOOR SCUFF PLATE

   Click here

7. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

   Tech Tips

   Disconnect the rear door opening trim weatherstrip to the extent that allows the removal of the deck trim side panel assembly.

8. REMOVE NO. 1 DECK TRIM COVER

   Click here

9. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

   Click here

10. REMOVE FRONT DECK SIDE TRIM COVER

    Click here

11. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY

    Click here

12. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY (for Lower Side)

    Click here

13. REMOVE NO. 2 ROOM LIGHT ASSEMBLY

    Click here

14. REMOVE DECK TRIM SIDE PANEL ASSEMBLY

    Click here

15. REMOVE SIDE NO. 2 AIRBAG SENSOR ASSEMBLY




    1. Check that the power switch is off.

    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

       CAUTION:

       Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Disconnect the connector from the side No. 2 airbag sensor assembly.

       Note

       When disconnecting any airbag connector, take care not to damage the airbag wire harness.

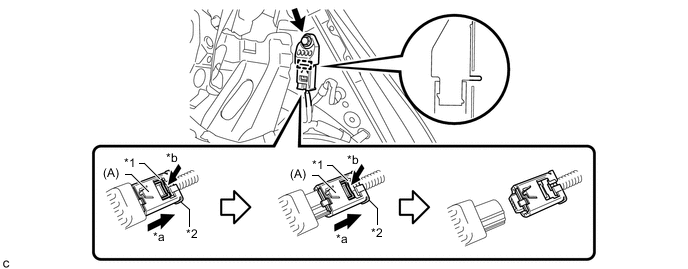

       1. Push down the white housing lock and slide the yellow CPA. (At this time, the connector cannot be disconnected yet.)



          Text in Illustration

          *1	White Housing Lock	*2	Yellow CPA
          *a	Slide	*b	Push

       2. Push down the white housing lock again and disconnect the connector.

          Note

          Do not push down the part (A) shown in the illustration when disconnecting.

    4. Remove the bolt and side No. 2 airbag sensor assembly from the vehicle body.

       Note

       Loosen the bolt while holding the side No. 2 airbag sensor assembly because the side No. 2 airbag sensor assembly pin (stopper) is easily damaged.

    5. After disconnecting the connector, check that the position of the white housing lock is correct as shown in the illustration.
