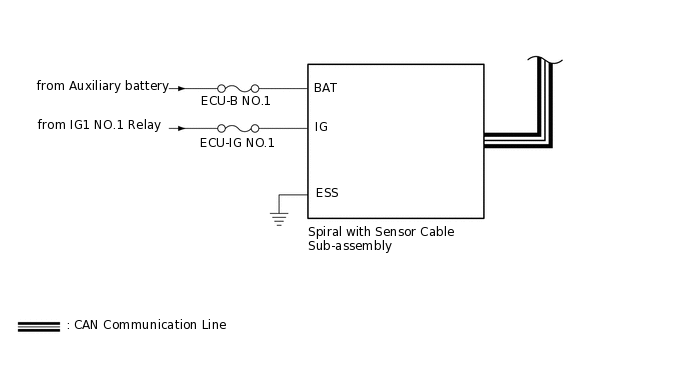

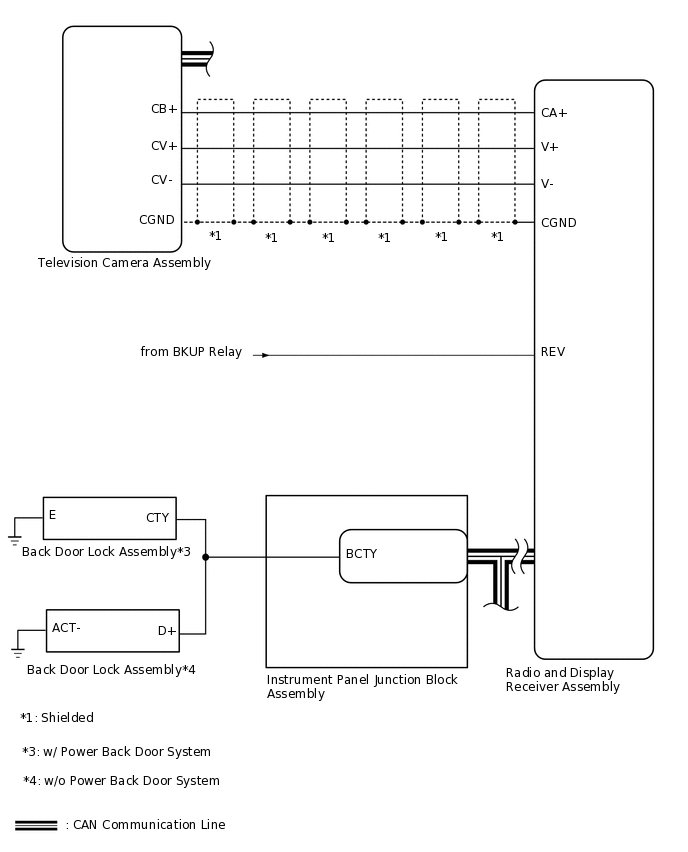

PARKING ASSIST MONITOR SYSTEM(for Camera built-in ECU) SYSTEM DIAGRAM

Table 1. Communication Table
Sender	Receiver	Signal	Line
Television Camera Assembly	Radio and Display Receiver Assembly	Guide line type signal	CAN Communication Line
Radio and Display Receiver Assembly	Television Camera Assembly	Display operation signal Guide line type request signal	CAN Communication Line
Spiral with Sensor Cable Sub-assembly	Television Camera Assembly	Steering angle signal	CAN Communication Line
Main Body ECU (Multiplex Network Body ECU)	Television Camera Assembly	Power switch signal Back door courtesy switch signal	CAN Communication Line
Back Door Lock Assembly	Main Body ECU (Multiplex Network Body ECU)	Back door courtesy switch signal	CAN Communication Line
