VACUUM WARNING SWITCH COMPONENTS
ILLUSTRATION
| *A | for LHD | - | - |
| *1 | CHECK VALVE GROMMET | *2 | VACUUM WARNING SWITCH ASSEMBLY |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |  |
N*m (kgf*cm, ft.*lbf): Specified torque |
| *T1 | Bolt color black: 8.0 N*m (82 kgf*cm, 71 in.*lbf) Bolt color silver: 8.9 N*m (91 kgf*cm, 79 in.*lbf) |
- | - |

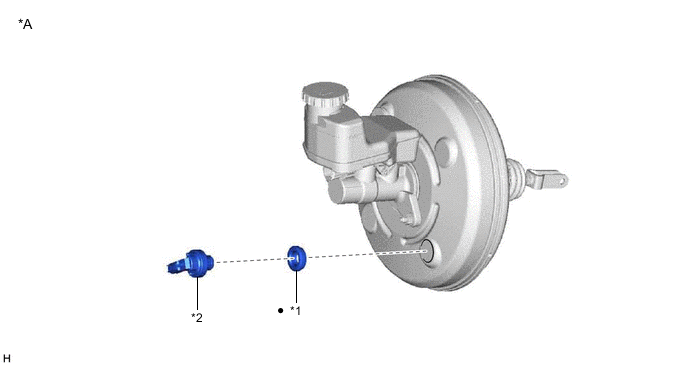

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | CHECK VALVE GROMMET | *2 | VACUUM WARNING SWITCH ASSEMBLY |
| ● | Non-reusable part | - | - |
