ENTRY AND START SYSTEM(for Entry Function) PARTS LOCATION

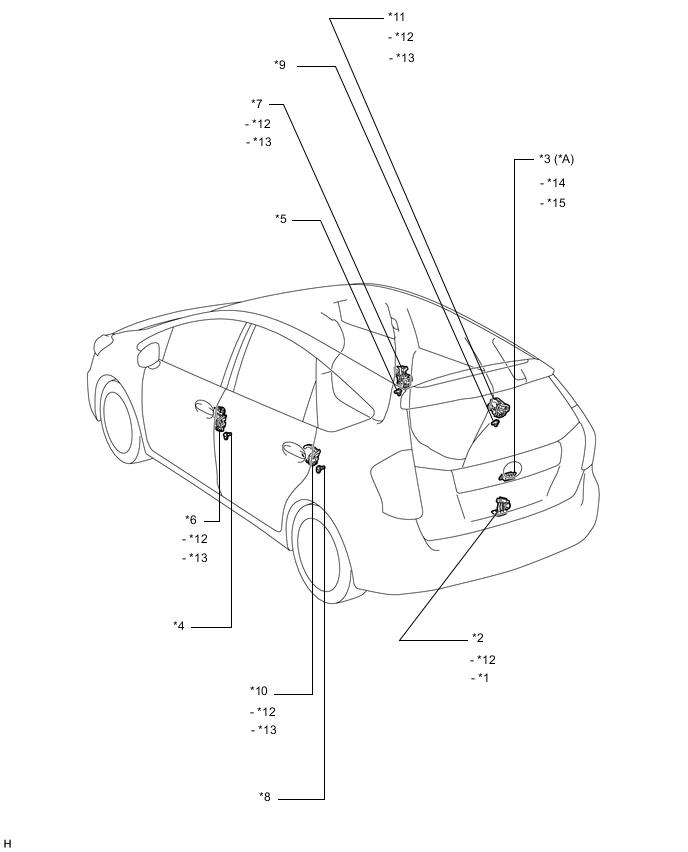

ILLUSTRATION
| *A | Except Driver's Door Only Entry and Start System | - | - |
| *1 | BACK DOOR COURTESY SWITCH | *2 | BACK DOOR LOCK |
| *3 | BACK DOOR OPENER SWITCH | *4 | FRONT DOOR COURTESY SWITCH LH |
| *5 | FRONT DOOR COURTESY SWITCH RH | *6 | FRONT DOOR LOCK LH |
| *7 | FRONT DOOR LOCK RH | *8 | REAR DOOR COURTESY SWITCH LH |
| *9 | REAR DOOR COURTESY SWITCH RH | *10 | REAR DOOR LOCK LH |
| *11 | REAR DOOR LOCK RH | *12 | DOOR LOCK MOTOR |
| *13 | DOOR LOCK POSITION SWITCH | *14 | LOCK SWITCH |
| *15 | UNLOCK SWITCH | - | - |

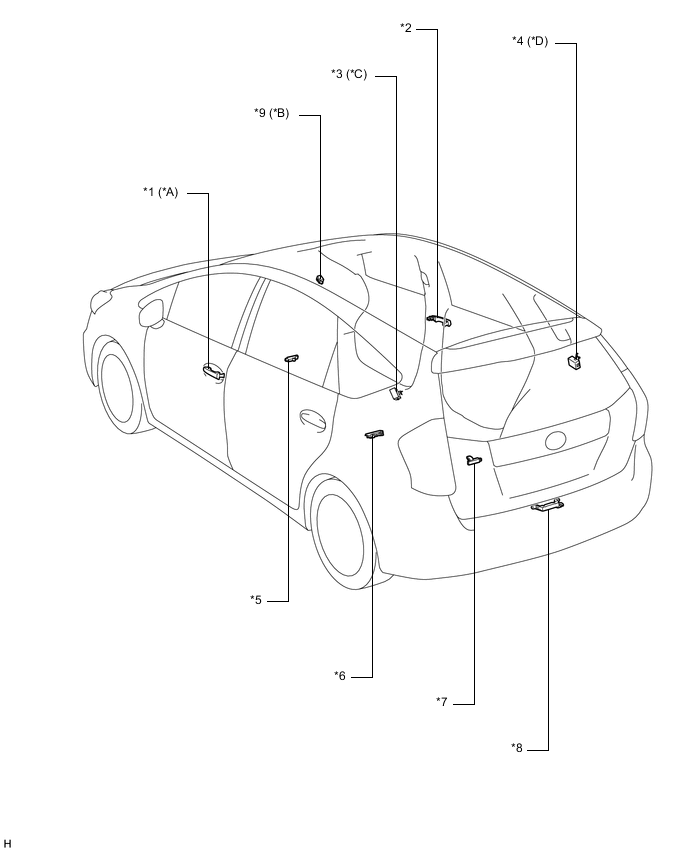

ILLUSTRATION
| *A | Except Driver's Door Only Entry and Start System | *B | for LHD vehicle, components and parts are located on the opposite side of vehicle |
| *C | w/ Tire Pressure Warning System | *D | w/o Tire Pressure Warning System |
| *1 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH | *2 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH |
| *3 | ELECTRICAL KEY AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY | *4 | DOOR CONTROL RECEIVER |
| *5 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) | *6 | NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) |
| *7 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE) | *8 | ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE) |
ILLUSTRATION

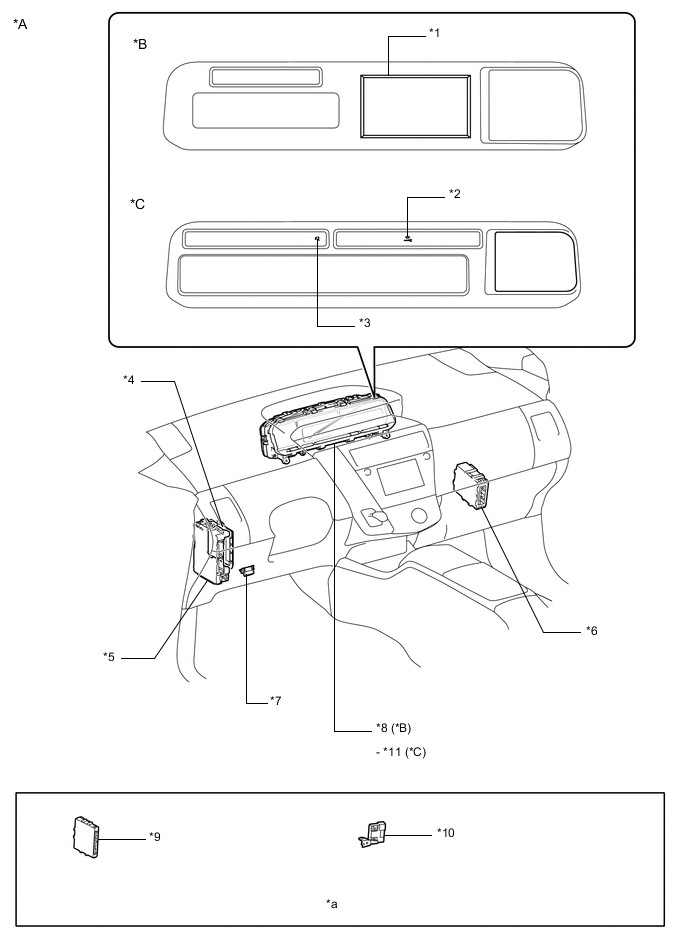

| *A | for LHD | *B | w/ Multi-information Display |
| *C | w/o Multi-information Display: | - | - |
| *1 | MULTI-INFORMATION DISPLAY | *2 | SMART WARNING LIGHT |
| *3 | P POSITION REQUEST INDICATOR LIGHT | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | *6 | TRANSMISSION CONTROL ECU ASSEMBLY |
| *7 | DLC3 | *8 | COMBINATION METER SUB-ASSEMBLY |
| *9 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *10 | ID CODE BOX (IMMOBILISER CODE ECU) |
| *11 | METER CIRCUIT PLATE | - | - |
| *a | Refer to the Service Bulletin for installation position of the parts | - | - |

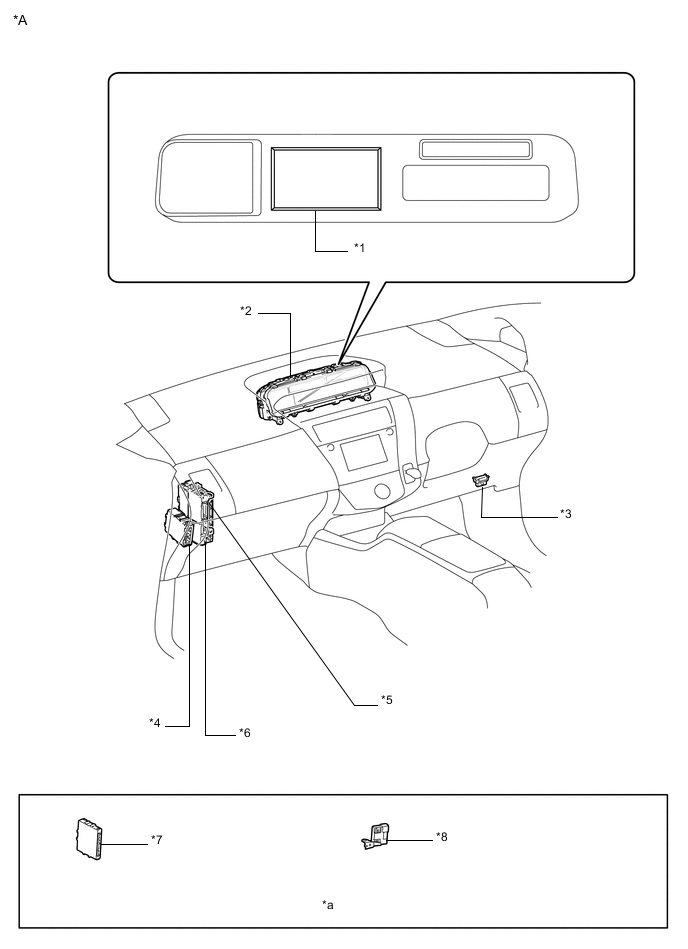

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | MULTI-INFORMATION DISPLAY | *2 | COMBINATION METER SUB-ASSEMBLY |
| *3 | DLC3 | *4 | TRANSMISSION CONTROL ECU ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *7 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *8 | ID CODE BOX (IMMOBILISER CODE ECU) |
| *a | Refer to the Service Bulletin for installation position of the parts | - | - |
