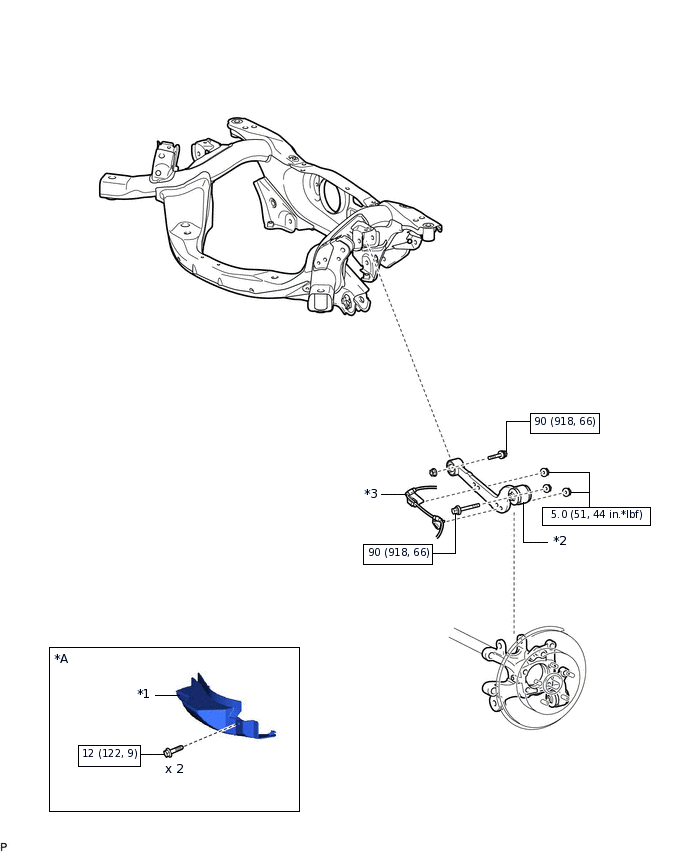

REAR UPPER ARM COMPONENTS

*A	w/ Cover	-	-
*1	REAR SUSPENSION ARM COVER LH	*2	REAR UPPER CONTROL ARM ASSEMBLY LH
*3	SKID CONTROL SENSOR WIRE	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

*A

w/ Cover

-

*1

REAR SUSPENSION ARM COVER LH

*2

REAR UPPER CONTROL ARM ASSEMBLY LH

*3

SKID CONTROL SENSOR WIRE

-

N*m (kgf*cm, ft.*lbf): Specified torque

-
