ELECTRICAL KEY OSCILLATOR(for Outside Luggage Compartment) REMOVAL

PROCEDURE

1. REMOVE REAR QUARTER PANEL MUDGUARD LH (w/ Mudguard)

   Click hereClick here

2. REMOVE REAR QUARTER PANEL MUDGUARD RH (w/ Mudguard)

   Click hereClick here

3. REMOVE REAR BUMPER COVER

   Click hereClick here

4. REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

   Click hereClick here

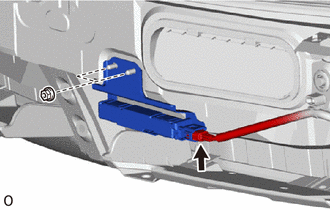

5. REMOVE ELECTRICAL KEY ANTENNA

   1.

      Remove the 2 nuts.

   2. Disconnect the connector and remove the electrical key antenna.
