FRONT BRAKE(for 16 inch Front Disc Brake) COMPONENTS
ILLUSTRATION
*A |
w/o Full Size Spare Tire |
*B |
w/ Full Size Spare Tire |
*1 |
BATTERY SERVICE COVER |
*2 |
DECK BOARD ASSEMBLY |
*3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

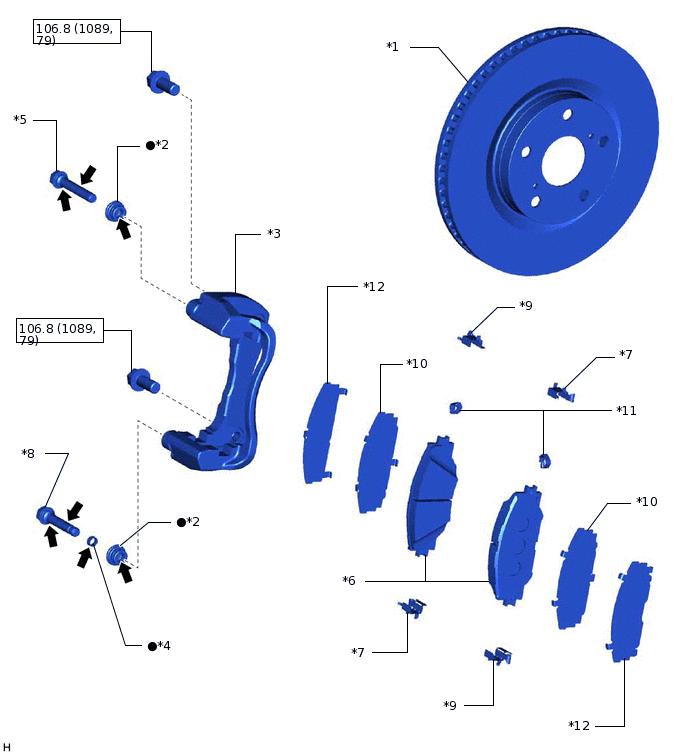

ILLUSTRATION
*1 |
FRONT DISC |
*2 |
FRONT DISC BRAKE BUSH DUST BOOT |
*3 |
FRONT DISC BRAKE CYLINDER MOUNTING LH |
*4 |
FRONT DISC BRAKE CYLINDER SLIDE BUSH |
*5 |
FRONT DISC BRAKE CYLINDER SLIDE PIN |
*6 |
FRONT DISC BRAKE PAD |
*7 |
FRONT NO. 1 DISC BRAKE PAD SUPPORT PLATE |
*8 |
FRONT NO. 2 DISC BRAKE CYLINDER SLIDE PIN |
*9 |
FRONT NO. 2 DISC BRAKE PAD SUPPORT PLATE |
*10 |
NO. 1 ANTI-SQUEAL SHIM |
*11 |
NO. 1 PAD WEAR INDICATOR PLATE |
*12 |
NO. 2 ANTI-SQUEAL SHIM |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
Lithium soap base glycol grease |
- |
- |

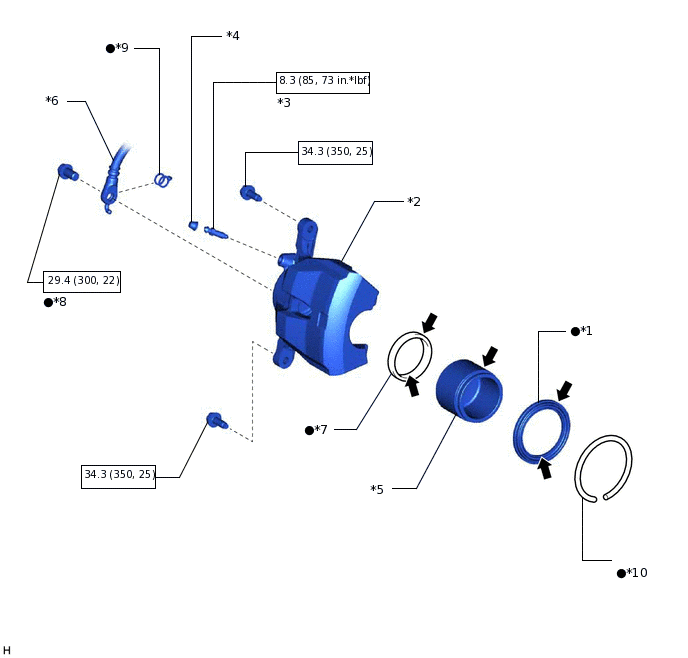

ILLUSTRATION
*1 |
CYLINDER BOOT |
*2 |
DISC BRAKE CYLINDER ASSEMBLY LH |
*3 |
FRONT DISC BRAKE BLEEDER PLUG |
*4 |
FRONT DISC BRAKE BLEEDER PLUG CAP |
*5 |
FRONT DISC BRAKE PISTON |
*6 |
FRONT FLEXIBLE HOSE |
*7 |
PISTON SEAL |
*8 |
UNION BOLT |
*9 |
GASKET |
*10 |
SET RING |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
Lithium soap base glycol grease |
- |
- |
