FRONT SUSPENSION MEMBER COMPONENTS

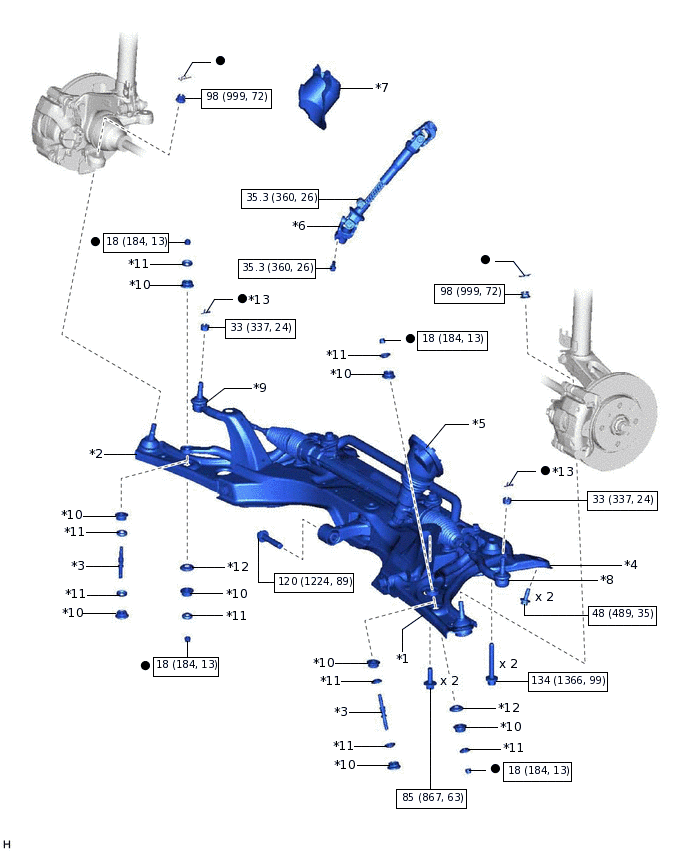

ILLUSTRATION
*1 |
FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH |
*2 |
FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH |
*3 |
FRONT STABILIZER BOLT |
*4 |
FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY |
*5 |
NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY |
*6 |
NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY |
*7 |
STEERING COLUMN HOLE COVER PLATE |
*8 |
TIE ROD END SUB-ASSEMBLY LH |
*9 |
TIE ROD END SUB-ASSEMBLY RH |
*10 |
FRONT STABILIZER CUSHION |
*11 |
NO. 1 CUSHION RETAINER |
*12 |
NO. 2 CUSHION RETAINER |
*13 |
COTTER PIN |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

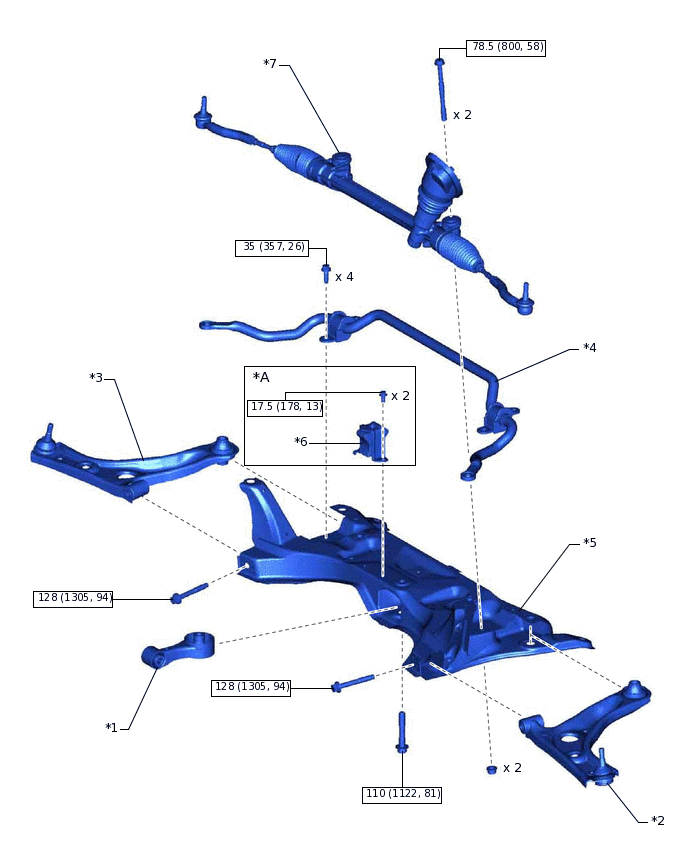

ILLUSTRATION
*A |
w/ Dynamic Damper |
- |
- |
*1 |
ENGINE MOVING CONTROL ROD |
*2 |
FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH |
*3 |
FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH |
*4 |
FRONT STABILIZER BAR |
*5 |
FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY |
*6 |
FRONT SUSPENSION MEMBER DYNAMIC DAMPER |
*7 |
STEERING LINK ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
