ENTRY AND START SYSTEM(for Entry Function) SYSTEM DIAGRAM

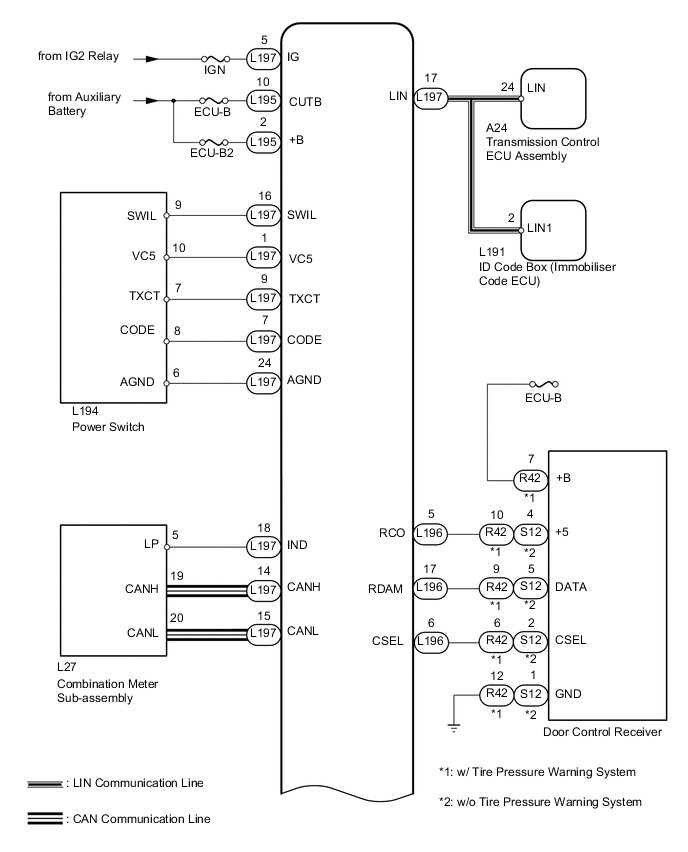

B005XWJE03

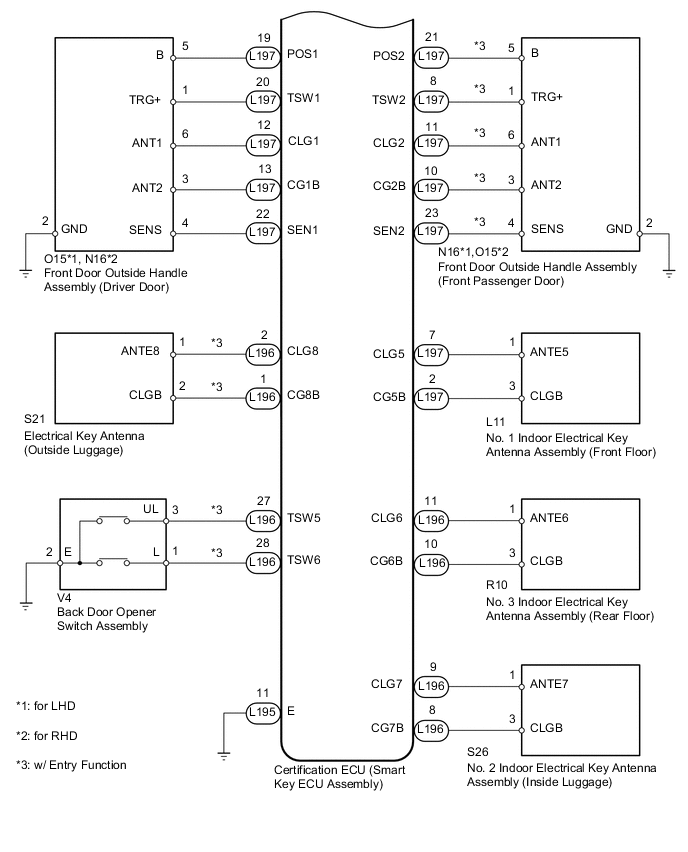

B005XOOE23

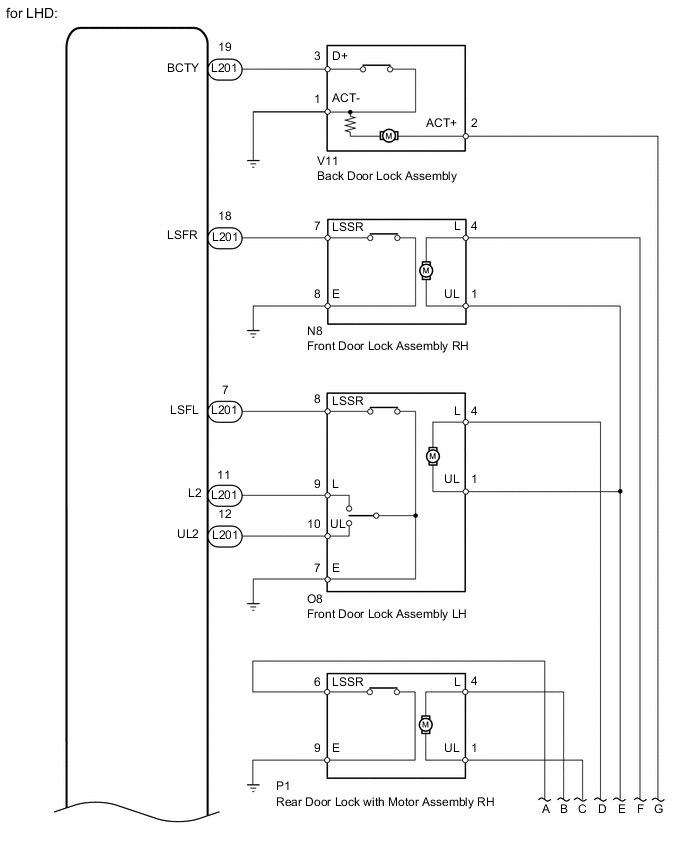

B005XRGE10

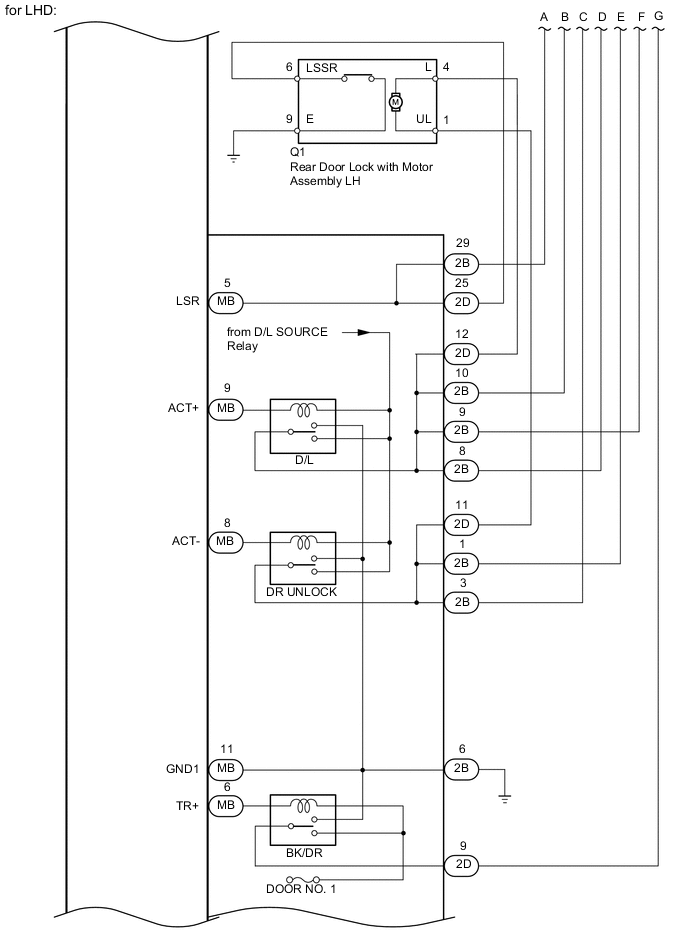

B005XYCE03
B005XOCE11

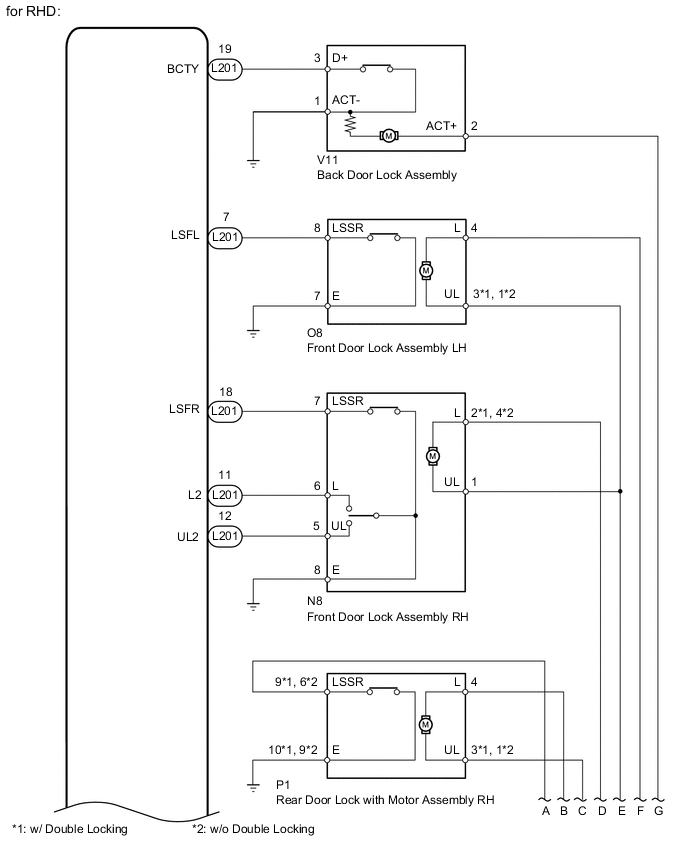

B005XRGE11

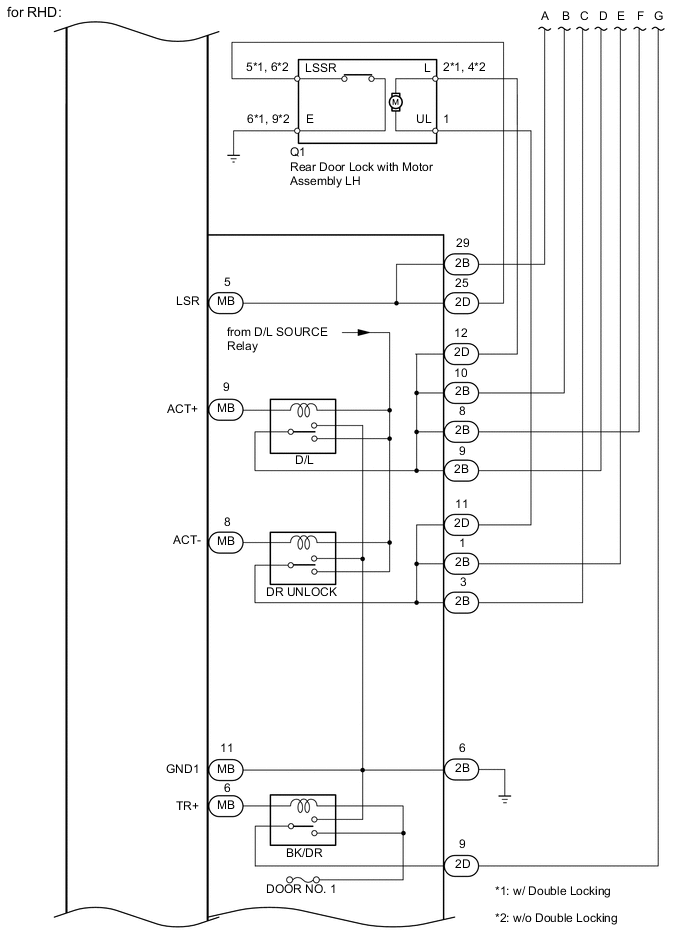

B005XYCE04

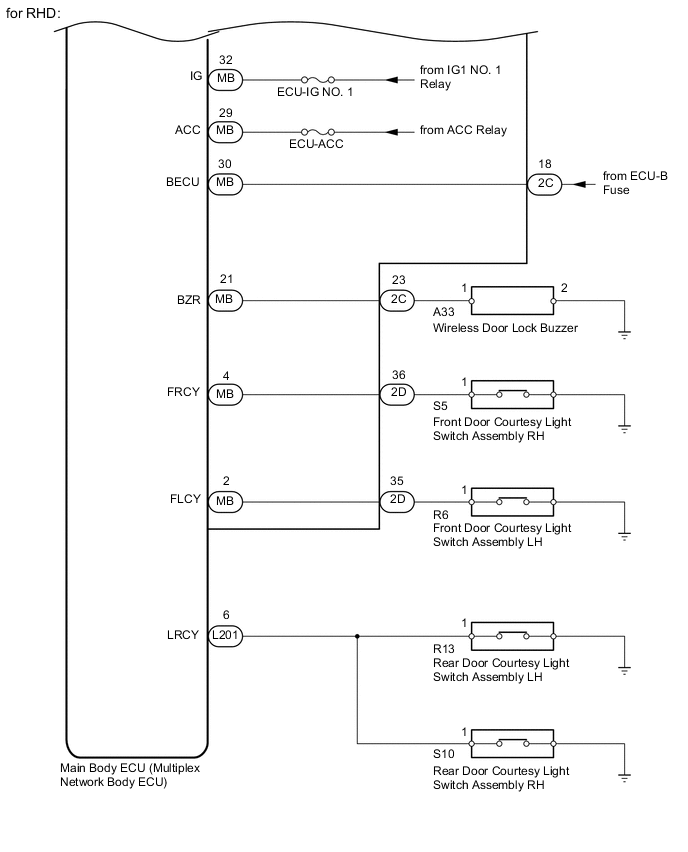

B005XOCE12
Component Function
Front door outside handle assembly

Sends request signals from the certification ECU (smart key ECU assembly) via the built-in electrical key antenna and forms the vehicle exterior detection area.

Sends door lock sensor touch signals to the certification ECU (smart key ECU assembly) (entry lock function).

Uses the built-in touch sensor to detect the operation of the front door outside handle assembly and sends signals to the certification ECU (smart key ECU assembly) (entry unlock function).

No. 1 indoor electrical key antenna assembly (front floor)

No. 3 indoor electrical key antenna assembly (rear floor)

 Receives the request code from the certification ECU (smart key ECU assembly) and forms the vehicle interior detection area.
No. 2 indoor electrical key antenna assembly (inside luggage) Receives the request code from the certification ECU (smart key ECU assembly) and forms the luggage compartment interior detection area.
Electrical key antenna (outside luggage) Receives the request code from the certification ECU (smart key ECU assembly) and forms the luggage compartment exterior detection area.
Back door opener switch assembly Sends switch operation signals to the certification ECU (smart key ECU assembly).
Door control receiver Receives the entry and start system code/wireless code sent from the electrical key transmitter sub-assembly and sends it to the certification ECU (smart key ECU assembly).
Turn signal flasher assembly (flasher relay) Blinks the hazard warning lights when performing answer-back in accordance with commands from the certification ECU (smart key ECU assembly) sent through the main body ECU (multiplex network body ECU) via CAN communication.
Wireless door lock buzzer Sounds when performing answer-back* or when warning functions operate in accordance with certification ECU (smart key ECU assembly) control.
Electrical key transmitter sub-assembly Sends the ID code upon receiving a request signal.
Certification ECU (smart key ECU assembly)

Sends request codes to each electrical key antenna.

Distinguishes and verifies the ID code from the electrical key transmitter sub-assembly and sends signals to each ECU in response to operated functions (controls entire system).

Performs encryption code communication with the ID code box (immobiliser code ECU) when ignition operations are performed.
