BRAKE PEDAL(for LHD) INSTALLATION

PROCEDURE

  1. INSTALL BRAKE PEDAL PAD

    1. Install the brake pedal pad to the brake pedal support assembly.

  2. INSTALL BRAKE PEDAL STROKE SENSOR ASSEMBLY

    Click here

  3. INSTALL BRAKE PEDAL SUPPORT ASSEMBLY

    1. Install the brake pedal support assembly with the 4 nuts.

      12.7 N*m

      130 kgf*cm

      9 ft.*lbf

    2. Connect the 3 clamps to the brake pedal support assembly.

    3. Connect the brake pedal stroke sensor connector to the brake pedal stroke sensor assembly.

    4. Install the brake pedal support reinforcement set bolt.

      23.6 N*m

      241 kgf*cm

      17 ft.*lbf

  4. INSTALL PUSH ROD PIN

    1. Apply a light coat of lithium soap base glycol grease to the push rod pin.

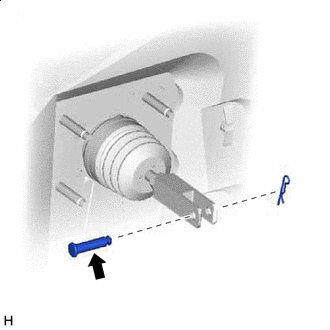

    2. C297827C02
      V100135

      Lithium soap base glycol grease

      Set the push rod clevis in place, insert the push rod pin from inside the vehicle, and install a new clip.

      Note:

      After installation, check that the pedal operates smoothly.

  5. INSTALL BRAKE PEDAL RETURN SPRING

    1. Install the brake pedal return spring to the brake pedal support assembly and push rod pin.

  6. INSTALL STOP LIGHT SWITCH ASSEMBLY

    Click here

  7. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY

    Click here

  8. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Click here

  9. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Click here

  10. INSTALL BATTERY SERVICE COVER

    Click here

  11. INSTALL DECK BOARD ASSEMBLY

    Click here

  12. CHECK AND ADJUST BRAKE PEDAL

    Click here

  13. PERFORM INITIALIZATION AND CALIBRATION OF LINEAR SOLENOID VALVE

    Click here
