INTELLIGENT PARKING ASSIST SYSTEM, Diagnostic DTC:C1628

DTC Code DTC Name
C1628 Vehicle Height Sensor Failure

DESCRIPTION

The rear height control sensor sub-assembly RH is connected to the parking assist ECU. This DTC is stored when the parking assist ECU judges that vehicle height sensor signal received from the rear height control sensor sub-assembly RH is abnormal or has not changed (rear height control sensor sub-assembly RH seized).

DTC No. DTC Detection Condition Trouble Area
C1628

  • Height control sensor signal is abnormal

  • Height control sensor seized

  • Harness or connector

  • Rear height control sensor sub-assembly RH

  • Parking assist ECU

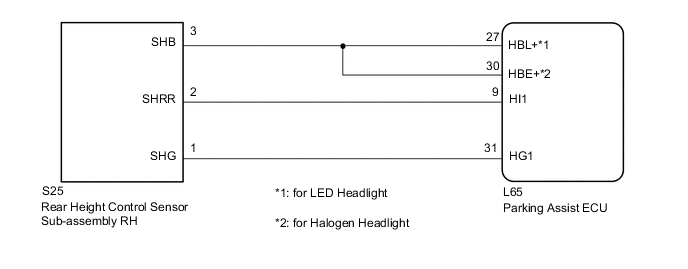

WIRING DIAGRAM

A005AK9E05

CAUTION / NOTICE / HINT

Note


  • When the "System initializing" message is displayed on the navigation ECU sub-assembly after the auxiliary battery cable has been disconnected, correct the steering angle neutral point Click here.

  • Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the intelligent parking assist system may be needed Click here.

PROCEDURE


  1. CHECK VEHICLE SPECIFICATION


    1. Check vehicle specification.

      Result
      Result Proceed to
      for LED Headlight A
      for Halogen Headlight B

    B

    CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY) Click here

    A

  2. CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY)


    1. Disconnect the L65 parking assist ECU connector.

    2. Disconnect the S25 rear height control sensor sub-assembly RH connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      L65-27 (HBL+) - Body ground Always 10 kΩ or higher
      L65-9 (HI1) - Body ground Always 10 kΩ or higher
      L65-31 (HG1) - Body ground Always 10 kΩ or higher
      L65-27 (HBL+) - S25-3 (SHB) Always Below 1 Ω
      L65-9 (HI1) - S25-2 (SHRR) Always Below 1 Ω
      L65-31 (HG1) - S25-1 (SHG) Always Below 1 Ω
      Result
      Result Proceed to
      NG A
      OK B

    A

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    B

    CHECK REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH Click here

  3. CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY)


    1. Disconnect the L65 parking assist ECU connector.

    2. Disconnect the S25 rear height control sensor sub-assembly RH connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      L65-30 (HBE+) - Body ground Always 10 kΩ or higher
      L65-9 (HI1) - Body ground Always 10 kΩ or higher
      L65-31 (HG1) - Body ground Always 10 kΩ or higher
      L65-30 (HBE+) - S25-3 (SHB) Always Below 1 Ω
      L65-9 (HI1) - S25-2 (SHRR) Always Below 1 Ω
      L65-31 (HG1) - S25-1 (SHG) Always Below 1 Ω

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  4. CHECK REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH


    1. Reconnect the L65 parking assist ECU connector.

    2. Disconnect the S25 rear height control sensor sub-assembly RH connector.

    3. A005A1ZE02
      Text in Illustration
      *a

      Front view of wire harness connector

      (to Rear Height Control Sensor Sub-assembly RH)

      Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      S25-3 (SHB) - S25-1 (SHG) Power switch on (IG) 4.75 to 5.25 V

    OK

    REPLACE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH Click here

    NG

    REPLACE PARKING ASSIST ECU Click here
