ТОПЛИВНАЯ ФОРСУНКА СНЯТИЕ


  1. DISCHARGE FUEL SYSTEM PRESSURE

    CAUTION:


    • Do not disconnect any part of the fuel system until you have discharged the fuel system pressure.

    • Even after discharging the fuel pressure, place a cloth or equivalent over fittings as you separate them to reduce risk of fuel spray on yourself or in the engine compartment.


    1. Disconnect the cable from the negative (-) battery terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

    2. A01E23AE01

      Disconnect the fuel pump connector.

    3. Connect the cable to the negative (-) battery terminal.

    4. Start the engine. After the engine has stopped on its own, turn the ignition switch OFF.

      Tech Tips

      DTC P0171/25 (system too lean) may be set.

    5. Crank the engine again, then check that the engine does not start.

    6. Loosen the fuel tank cap, then discharge the pressure in the fuel tank completely.

    7. Connect the fuel pump connector.

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

  3. DRAIN ENGINE COOLANT


    1. Remove the radiator cap.

    2. Loosen the 2 cylinder block drain cock plugs and radiator drain plug, and then the coolant.

      Tech Tips

      Collect the coolant in a container and dispose of it according to the regulations in your area.

      A01DXHYE01

  4. REMOVE V-BANK COVER


    1. Remove the 2 nuts and cover.

  5. DISCONNECT NO. 2 VENTILATION HOSE

    A01DZMIE01

  6. REMOVE AIR CLEANER ASSEMBLY


    1. A01E2MF

      Отсоедините вакуумный шланг.

    2. Отсоедините разъем датчика массового расхода воздуха.

    3. Снимите 2 зажима жгута проводов.

    4. A01DZ4O

      Ослабьте 2 хомута шланга.

    5. Выверните 2 болта и снимите воздушный фильтр.

  7. REMOVE INTAKE AIR SURGE TANK


    1. A01E06TE01

      Disconnect the No. 5 water by-pass hose.

    2. A01E1BHE01

      Disconnect the No. 4 water by-pass hose.

    3. A01DZPTE01

      Disconnect the fuel vapor feed hose assembly.

    4. A01DWN0E01

      Disconnect the ventilation hose.

    5. A01E259E01

      Disconnect the 2 VSV connectors.

    6. Disconnect the throttle motor connector.

    7. Remove the 3 wire harness clamps and hose clamp.

    8. A01E0MAE01

      Remove the 3 upper bolts, which are used to secure the 2 surge tank stays and throttle body bracket.

    9. A01E2CQE01

      Using an 8 mm hexagon wrench, remove the 4 bolts.

    10. Remove the 2 nuts, intake air surge tank and gasket.

  8. DISCONNECT NO. 1 FUEL PIPE SUB-ASSEMBLY


    1. A01DZ2NE01

      Remove the fuel pipe clamp.

    2. Pinch the tube connector and then pull out the fuel pipe.

      Note


      • A01DZGYE08

      • Check if there is any dirt or mud around the connector before this procedure, Clean if necessary. Foreign matter can affect the quick connector O-ring's seal between the fuel pipe and fuel delivery pipe.

      • Do not use any tool in this procedure.

      • Do not bend or twist the nylon tube.

      • Keep the plug free from foreign objects.

      • To protect the fuel pipe, cover it with a plastic bag after checking.

      • When the fuel pipe and fuel delivery pipe are stuck, pinch the nylon tube with your fingers, and turn it carefully to free and then disconnect the fuel pipe.

  9. DISCONNECT NO. 2 FUEL PIPE SUB-ASSEMBLY

    A01E19NE01

    1. Remove the fuel pipe clamp.

    2. Pinch the tube connector and then pull out the fuel pipe.

      Note


      • A01DZGYE08

      • Check if there is any dirt or mud around the connector before this procedure, Clean if necessary. Foreign matter can affect the quick connector O-ring's seal between the fuel pipe and fuel delivery pipe.

      • Do not use any tool in this procedure.

      • Do not bend or twist the nylon tube.

      • Keep the plug free from foreign objects.

      • To protect the fuel pipe, cover it with a plastic bag after checking.

      • When the fuel pipe and fuel pressure regulator are stuck, pinch the nylon tube with fingers, and turn it carefully to free and then disconnect the fuel pipe.

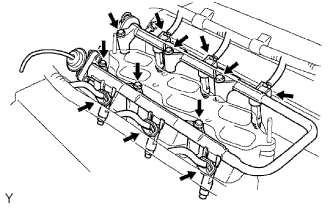

  10. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY

    A01DYXME01

    1. Disconnect the 6 fuel injector connectors.

    2. Remove the 6 bolts and fuel delivery pipe together with the 6 fuel injectors.

      Note

      Be careful not to drop the injectors when removing the fuel delivery pipe.

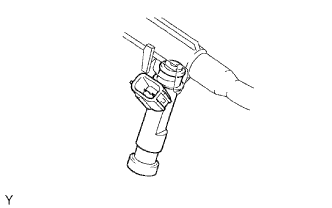

  11. REMOVE INJECTOR ASSEMBLY

    A01DZ4AE04

    1. Pull out the 6 injectors from the delivery pipe.
