FUEL TANK(w/o Canister Pump Module) COMPONENTS

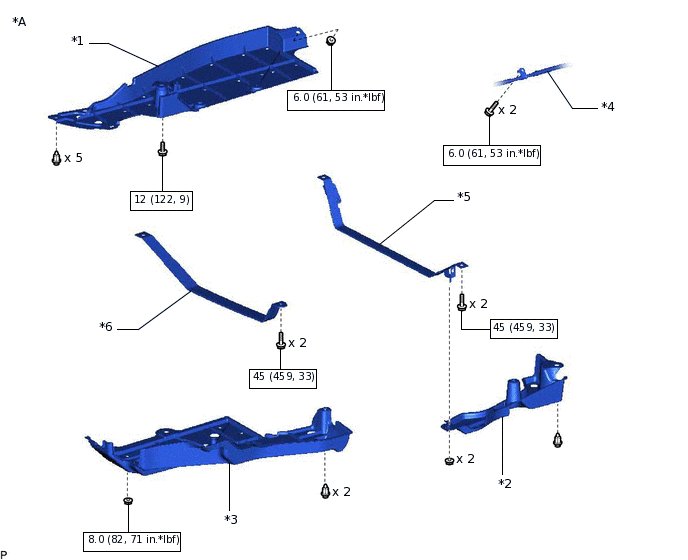

ILLUSTRATION
*A |
w/ Cover |
- |
- |
*1 |
FRONT FLOOR COVER |
*2 |
NO. 1 FLOOR UNDER COVER |
*3 |
NO. 1 FUEL TANK PROTECTOR |
*4 |
NO. 2 PARKING BRAKE CABLE ASSEMBLY |
*5 |
NO. 2 FUEL TANK BAND |
*6 |
NO. 1 FUEL TANK BAND |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

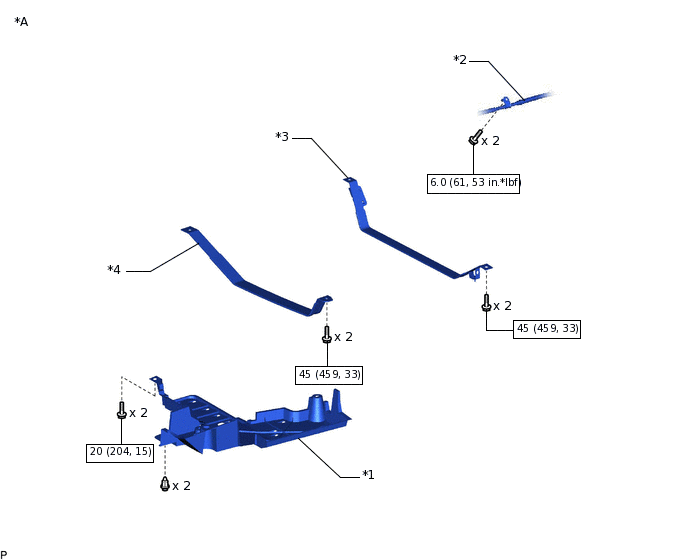

ILLUSTRATION
*A |
w/o Cover |
- |
- |
*1 |
NO. 1 FUEL TANK PROTECTOR |
*2 |
NO. 2 PARKING BRAKE CABLE ASSEMBLY |
*3 |
NO. 2 FUEL TANK BAND |
*4 |
NO. 1 FUEL TANK BAND |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

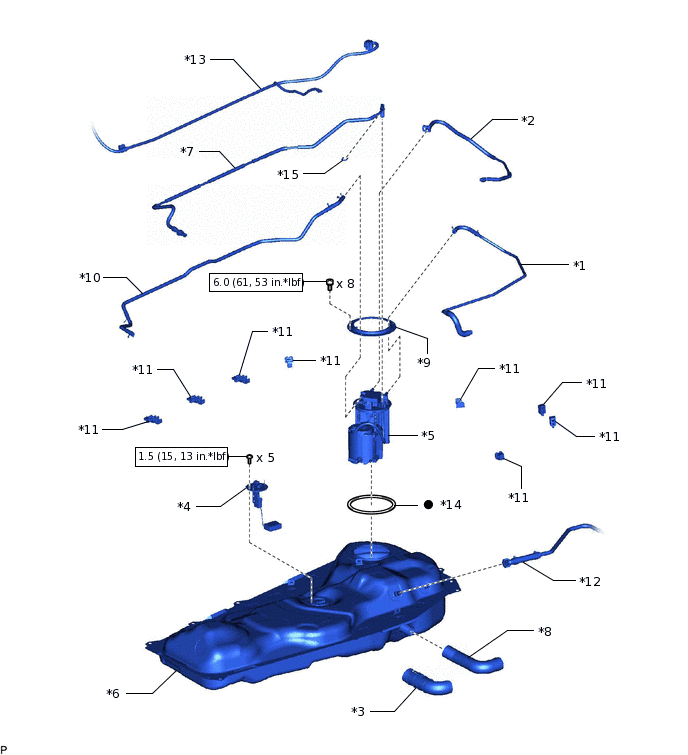

ILLUSTRATION
*1 |
CHARCOAL CANISTER OUTLET TUBE SUB-ASSEMBLY |
*2 |
FUEL EVAPORATION TUBE SUB-ASSEMBLY |
*3 |
FUEL HOSE PROTECTOR |
*4 |
FUEL SENDER GAUGE ASSEMBLY |
*5 |
FUEL SUCTION TUBE ASSEMBLY |
*6 |
FUEL TANK ASSEMBLY |
*7 |
FUEL TANK MAIN TUBE SUB-ASSEMBLY |
*8 |
FUEL TANK TO FILLER PIPE HOSE |
*9 |
FUEL TANK VENT TUBE SET PLATE |
*10 |
NO. 1 FUEL EVAPORATION TUBE |
*11 |
NO. 4 FUEL TUBE CLAMP |
*12 |
NO. 3 FUEL TANK BREATHER TUBE SUB-ASSEMBLY |
*13 |
WIRE HARNESS |
*14 |
GASKET |
*15 |
TUBE JOINT CLIP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
