MILLIMETER WAVE RADAR SENSOR INSTALLATION

CAUTION / NOTICE / HINT

Note

If the millimeter wave radar sensor assembly has been struck or dropped, replace the millimeter wave radar sensor assembly with a new one.

PROCEDURE


  1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY


    1. Attach the 2 guides to install the millimeter wave radar sensor assembly.

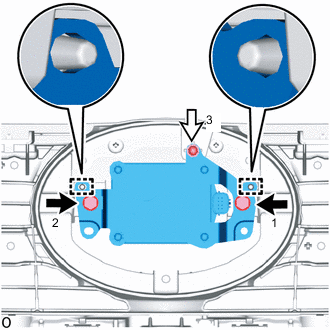

    2. B0068SSC02
      B0068HS Bolt
      B006964 Screw

      Install the screw and 2 bolts.

      Tech Tips

      Tighten the bolts and screws in the order shown in the illustration.

  2. INSTALL NO. 1 RADIATOR GRILLE RETAINER

    Click here

  3. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY


    1. If the millimeter wave radar sensor has been replaced, the front of the vehicle has been repaired or modified, or the position of the beam axis change mechanism has been changed, perform adjustment.

      Click here
