SMART ENTRY AND START SYSTEM(for Entry Function) SYSTEM DIAGRAM


  1. SMART ENTRY AND START SYSTEM (for Entry Function)

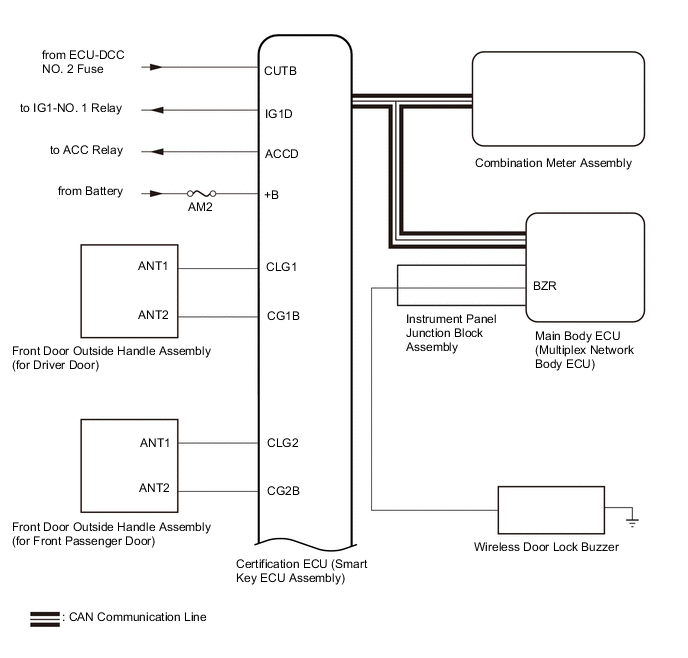

    B00861PE01

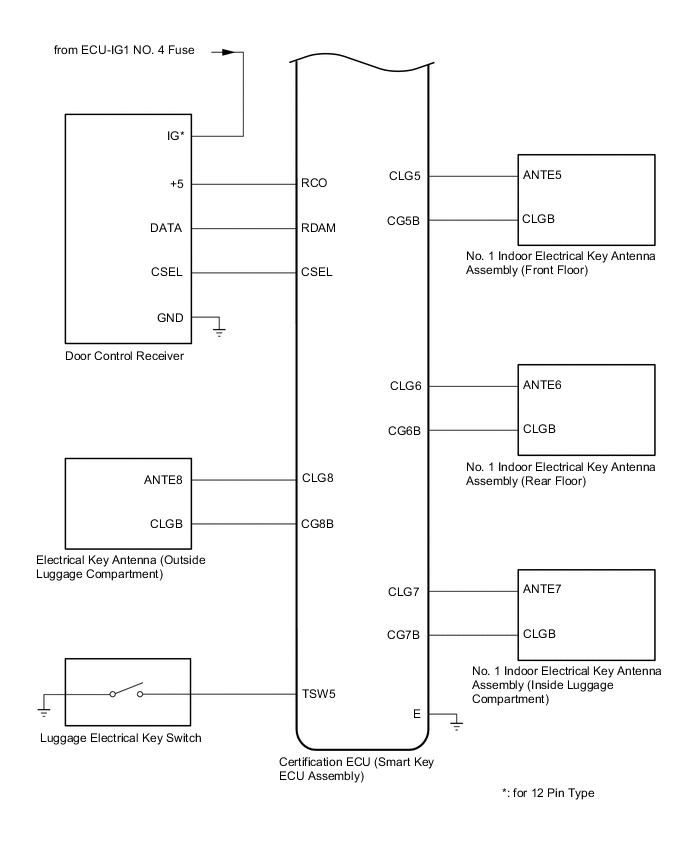

    B006XXOE08

  2. SMART ENTRY AND START SYSTEM (for Start Function)

    Click here

  3. POWER DOOR LOCK CONTROL SYSTEM

    Click here

  4. WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Entry and Start System)

    Click here

  5. LUGGAGE COMPARTMENT DOOR OPENER SYSTEM

    Click here
