BLIND SPOT MONITOR SENSOR REMOVAL

PROCEDURE

  1. REMOVE REAR QUARTER PANEL MUDGUARD LH (w/ Mudguard)

    Click hereClick here

  2. REMOVE REAR QUARTER PANEL MUDGUARD RH (w/ Mudguard)

    Tip:

    Use the same procedure described for the LH side.

  3. REMOVE REAR BUMPER COVER

    Click hereClick here

  4. REMOVE BLIND SPOT MONITOR SENSOR LH

    Note:

    • Avoid any impact to the blind spot monitor sensor LH.

    • Do not drop the blind spot monitor sensor LH. If it is dropped, replace it with a new one.

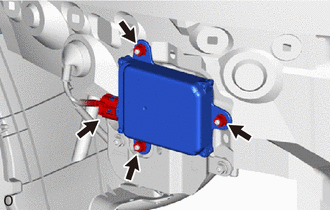

    1. B335780

      Disconnect the connector.

    2. Remove the 3 nuts and blind spot monitor sensor LH.

  5. REMOVE BLIND SPOT MONITOR SENSOR RH

    Note:

    • Avoid any impact to the blind spot monitor sensor RH.

    • Do not drop the blind spot monitor sensor RH. If it is dropped, replace it with a new one.

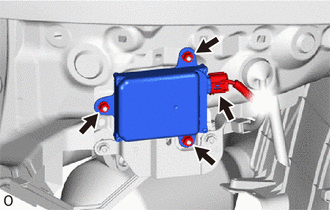

    1. B335781

      Disconnect the connector.

    2. Remove the 3 nuts and blind spot monitor sensor RH.
