OIL PRESSURE SWITCH REMOVAL

PROCEDURE

1. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY

   1.

      Disconnect the engine oil pressure switch assembly connector.

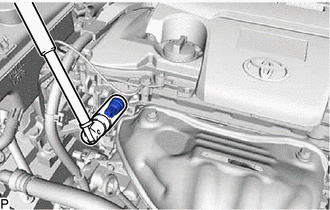

   2. Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.
