LANE DEPARTURE ALERT SYSTEM(w/ Steering Control)


  1. OPERATION


    1. The combination meter assembly illuminates the indicator lights or displays an indicator on the multi-information display and sounds a meter buzzer in accordance with the respective condition.

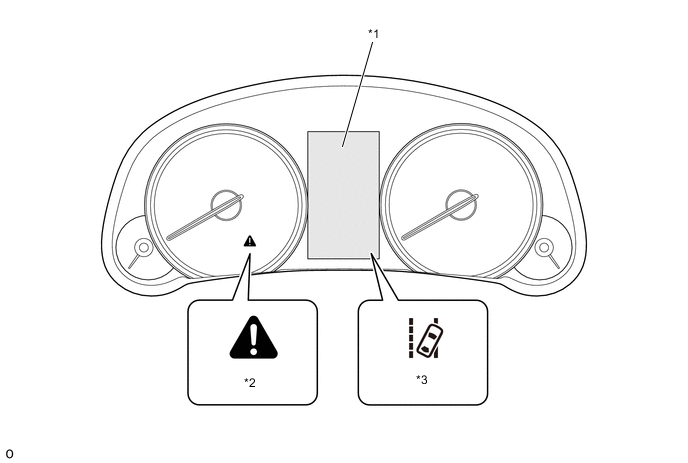

      B002FFBC01
      *1 Multi-information Display *2 Master Warning Light
      *3 LDA Indicator - -
      Condition Multi-information Display*1 LDA Indicator Meter Buzzer

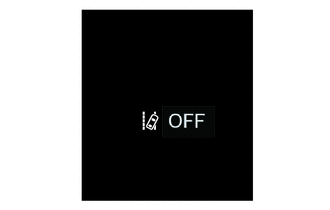

      LDA main switch off B002FK2 - -

      • LDA main switch on

      • Steering assist off

      Lane Departure

      Alert Turned On

      Steering Assist

      Inactive

      		 Illuminates (White) -

      • LDA main switch on

      • Steering assist on

      Lane Departure

      Alert Turned On

      Steering Assist

      Active

      		 Illuminates (White) -

      • LDA main switch on

      • Lane markers not detected

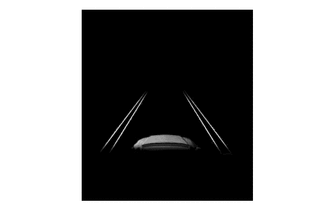

      		 B002FO7 Illuminates (White) -

      • LDA main switch on

      • Lane marker detected*2

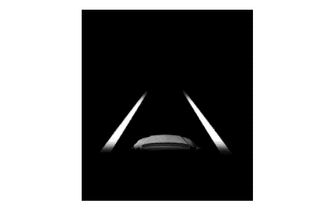

      		 B002FNN Illuminates (White) -

      • LDA main switch on

      • Lane marker detected*2

      • Lane departure alert function operating

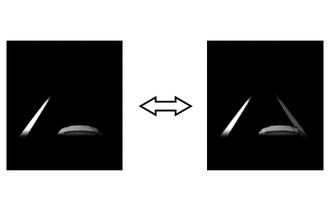

      		 B002FCZ Blinks (Amber) Sounds
      The lane marker icons blink

      • LDA main switch on

      • Lane marker detected*2

      • Steering assist function operating

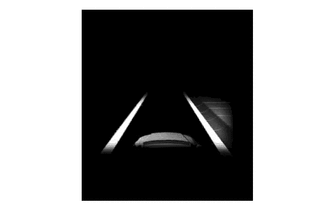

      		 B002FV9 Illuminates (Green) -

      • LDA main switch on

      • Lane marker detected*2

      • Steering assist function operating

      • Lane departure alert function operating

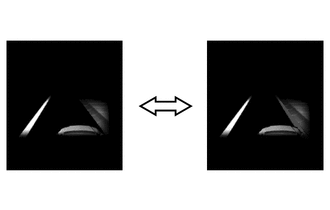

      		 B002FAQ Blinks (Amber) Sounds
      The lane marker icons blink

      Tech Tips

      *1: These illustrations are examples.

      *2: The lane markers are displayed independently on the left and right sides depending on the detection condition.

      Warning Messages
      Condition Multi-information Display Master Warning Light Meter Buzzer
      System malfunction

      Lane Departure

      Alert

      Malfunction

      Visit Your Dealer

      		 Illuminates Sounds
      Sensor other than forward recognition camera temporarily unavailable

      Lane Departure Alert

      Unavailable

      		 Illuminates Sounds

      • Abnormal forward recognition camera voltage

      • Forward recognition camera temperature outside of operational range

      • Other forward recognition camera malfunction

      Front Camera

      Unavailable

      		 - -
      Forward recognition camera view is unclear

      Front Camera

      Vision Blocked

      Clean and Demist

      Windshield

      		 - -
      LDA main switch is on (steering assist available) and no hands are detected on steering wheel

      LDA

      Hold Steering

      Wheel

      ↓

      LDA Steering

      Assist Unavailable

      Hold Steering

      Wheel

      		 Illuminates*1 Sounds*1*2
      Vehicle speed is less than approximately 50 km/h (32 mph)

      Lane Departure

      Alert

      Unavailable

      Below Approx

      50km/h

      		 - -

      *1: When display changes

      *2: Models for Korea
