BRAKE BOOSTER(for LHD) INSTALLATION

PROCEDURE

  1. INSTALL BRAKE BOOSTER GASKET

    1. Install a new brake booster gasket to the brake booster with master cylinder assembly.

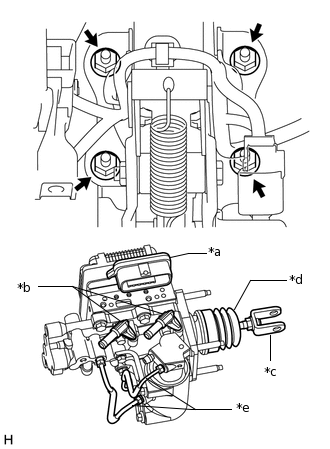

  2. INSTALL BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

    1. C265889C01

      *a

      Connector Portion

      *b

      Union

      *c

      Push Rod Clevis

      *d

      Boot

      *e

      Front No. 2 Brake Tube

      Install the brake booster with master cylinder assembly with the 4 nuts.

      12.7 N*m

      130 kgf*cm

      9 ft.*lbf

      Note:

      • Do not kink or damage the brake tubes.

      • Do not carry the brake booster with master cylinder assembly by the portion shown in the illustration.

      • Be careful not to allow brake fluid to enter the connector of ECU.

      • If installing a new brake booster with master cylinder assembly, do not remove the hole plugs before connecting the brake lines because the brake booster with master cylinder is filled with brake fluid.

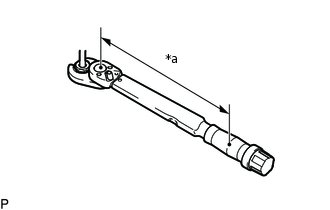

    2. A329093C03

      *a

      Torque Wrench Fulcrum Length

      Using a union nut wrench, tighten each brake line.

      Specified tightening torque

      15.2 N*m

      155 kgf*cm

      11 ft.*lbf

      Note:

      Do not kink or damage the brake tubes.

      Tip:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Click hereClick hereClick hereClick here

      • When using union nut wrench (fulcrum length of 22 mm (0.8661 in.)) + torque wrench (fulcrum length of 162 mm(6.3779 in.)): 13.4 N*m (137 kgf*cm,10 ft.*lbf)

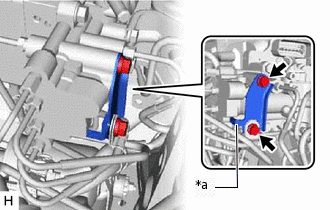

    3. C310879C01

      *a

      Stopper

      Install the No. 2 brake tube clamp bracket to the brake booster with master cylinder assembly with the 2 bolts.

      5.0 N*m

      51 kgf*cm

      44 in.*lbf

      Note:

      Securely install the No. 2 brake tube clamp bracket so that its stopper contacts the brake booster with master cylinder assembly as shown in the illustration.

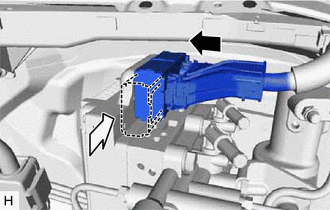

    4. C308458

      Connect the connector to the brake booster with master cylinder assembly.

      Note:

      • Make sure that the connector can be connected smoothly. Do not allow water, oil or dirt to enter.

      • Make sure that the connector lock is locked securely.

  3. INSTALL RESERVOIR BRACKET

    1. Install the reservoir bracket with the 2 bolts.

      8.5 N*m

      87 kgf*cm

      75 in.*lbf

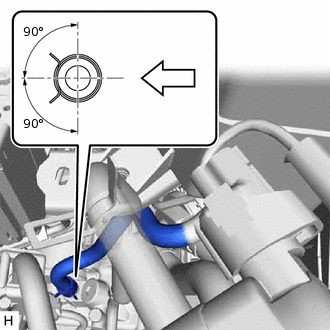

  4. CONNECT BRAKE ACTUATOR HOSE

    1. C310880C01
      V100136

      Vehicle Interior

      Connect the brake actuator hose to the brake booster pump assembly, and slide the clamp to secure it.

      Note:

      • Make sure to match the identification mark (green) on the hose with the brake booster pump rib.

      • Make sure to install the hose to the proper location.

      • Install the clip within the range shown in the illustration.

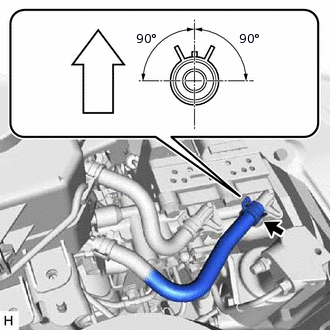

  5. CONNECT NO. 1 RESERVOIR HOSE

    1. C308459C01
      V100136

      Up

      Connect the No. 1 reservoir hose to the brake booster with master cylinder assembly, and slide the clip to secure it.

      Note:

      • Make sure to match the identification mark (white (unpainted color)) on the hose and brake booster with master cylinder assembly.

      • When connecting the No. 1 reservoir hose, face the identification mark up.

      • Make sure to install the hose to the proper location.

      • Install the clip within the range shown in the illustration.

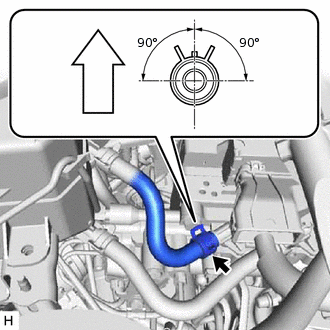

  6. CONNECT NO. 2 RESERVOIR HOSE

    1. C308460C01
      V100136

      Up

      Connect the No. 2 reservoir hose to the brake booster with master cylinder assembly, and slide the clip to secure it.

      Note:

      • Make sure to match the identification mark (green) on the No. 2 reservoir hose and brake booster with master cylinder assembly.

      • When connecting the No. 2 reservoir hose, face the identification mark up.

      • Make sure to install the hose to the proper location.

      • Install the clip within the range shown in the illustration.

  7. CONNECT BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

    1. Connect the brake master cylinder reservoir with bracket with the 3 bolts.

      8.5 N*m

      87 kgf*cm

      75 in.*lbf

  8. INSTALL PUSH ROD PIN

    Click here

  9. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    Click here

  10. FILL RESERVOIR WITH BRAKE FLUID

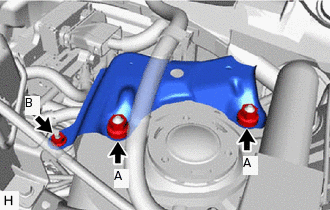

  11. INSTALL COWL BODY MOUNTING REINFORCEMENT LH

    1. C308450N01

      Install the cowl body mounting reinforcement LH with the 3 nuts.

      Nut A

      50 N*m

      510 kgf*cm

      37 ft.*lbf

      Nut B

      8.5 N*m

      87 kgf*cm

      75 in.*lbf

  12. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

    Click here

  13. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Click here

  14. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Click here

  15. BLEED BRAKE SYSTEM

    Click here

  16. INSPECT AND ADJUST BRAKE PEDAL

    Click here

  17. OBTAIN ZERO POINT OF YAW RATE AND ACCELERATION SENSOR

    Tip:

    After the brake booster with master cylinder assembly is replaced, obtain the zero point of the yaw rate and acceleration sensor.

    Click here

  18. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Click hereClick here
