REAR NO. 2 SEAT OUTER BELT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE REAR NO. 2 SEAT ASSEMBLY LH

    1. Remove the rear No. 2 seat assembly LH (Click here).

  2. REMOVE REAR NO. 1 FLOOR STEP COVER (w/ Rear No. 2 Seat)

    Click here

  3. REMOVE QUARTER SCUFF PLATE LH (w/ Rear No. 2 Seat)

    Click here

  4. REMOVE REAR DOOR SCUFF PLATE LH

    Click here

  5. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    1. Partially remove the rear door opening trim weatherstrip so that the front quarter trim panel assembly LH and deck trim side panel assembly LH can be removed (Click here).

  6. REMOVE REAR NO. 1 SEAT OUTER LAP BELT ANCHOR COVER

    Click here

  7. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Click here

  8. REMOVE NO. 1 TONNEAU COVER HOLDER CAP (w/o Tonneau Cover)

    Click here

  9. REMOVE FRONT DECK SIDE TRIM COVER (w/ Tonneau Cover)

    Click here

  10. REMOVE ASSIST GRIP PLUG (w/ Rear No. 2 Seat)

    Click here

  11. REMOVE ASSIST GRIP SUB-ASSEMBLY

    Click here

  12. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    1. B238753

      Remove the bolt and disconnect the rear No. 1 seat outer belt floor anchor.

    2. B240052

      Remove the bolt and disconnect the rear No. 2 seat outer belt floor anchor.

    3. B240055

      for RH Side:

      Remove the bolt and disconnect the rear No. 2 seat outer belt floor anchor.

    4. Remove the 2 bolts and 2 screws.

    5. Detach the 3 clips and 8 claws.

    6. Disconnect each connector and remove the deck trim side panel.

      B247869

  13. REMOVE REAR QUARTER TRIM PANEL ASSEMBLY LH

    Click here

  14. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET (for LH Side, w/ Woofer)

    Click here

  15. REMOVE NO. 1 SPEAKER WITH BOX ASSEMBLY (for LH Side, w/ Woofer)

    Click here

  16. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH

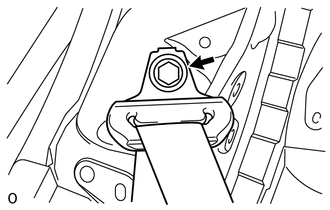

    1. B241720

      Remove the bolt and rear No. 1 seat outer belt shoulder anchor.

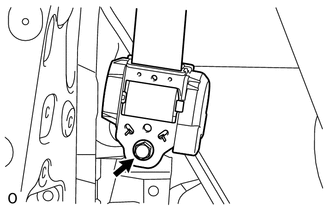

    2. B241721

      Remove the bolt and rear No. 2 seat outer belt assembly.

  17. REMOVE REAR SEAT OUTER BELT ANCHOR PLATE SUB-ASSEMBLY LH

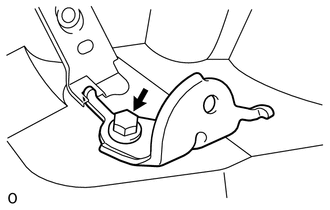

    B241722

    1. Remove the bolt and anchor plate.

  18. REMOVE SEAT BELT ANCHOR PLATE ASSEMBLY (for RH Side)

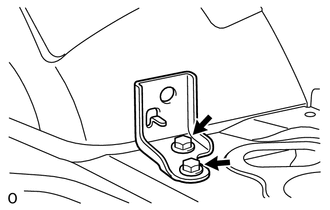

    B241723

    1. Remove the 2 bolts and anchor plate.
