CYLINDER BLOCK COMPONENTS

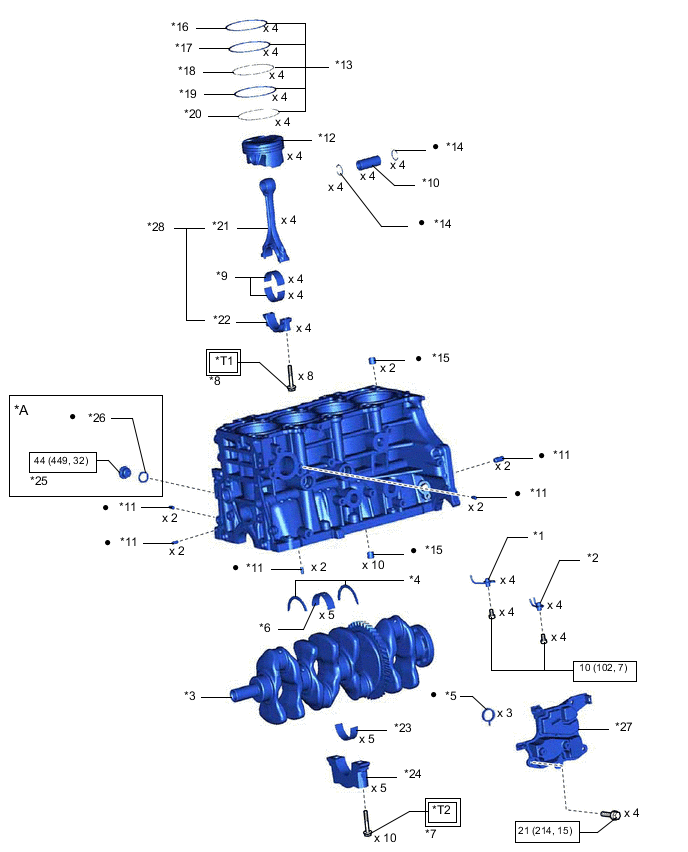

ILLUSTRATION
| *A | w/o Oil cooler | - | - |
| *1 | NO. 1 OIL NOZZLE SUB-ASSEMBLY | *2 | NO. 2 OIL NOZZLE SUB-ASSEMBLY |
| *3 | CRANKSHAFT | *4 | CRANKSHAFT THRUST WASHER |
| *5 | OIL SEPARATOR GASKET | *6 | CRANKSHAFT BEARING |
| *7 | CRANKSHAFT BEARING CAP SET BOLT | *8 | CONNECTING ROD BOLT |
| *9 | CONNECTING ROD BEARING | *10 | PISTON PIN |
| *11 | STRAIGHT PIN | *12 | PISTON |
| *13 | PISTON RING SET | *14 | PISTON PIN HOLE SNAP RING |
| *15 | RING PIN | *16 | NO. 1 COMPRESSION RING |
| *17 | NO. 2 COMPRESSION RING | *18 | UPPER SIDE RAIL |
| *19 | OIL RING EXPANDER | *20 | LOWER SIDE RAIL |
| *21 | CONNECTING ROD | *22 | CONNECTING ROD CAP |
| *23 | NO. 2 CRANKSHAFT BEARING | *24 | CRANKSHAFT BEARING CAP |
| *25 | CYLINDER BLOCK WITH HEAD STRAIGHT SCREW PLUG | *26 | GASKET |
| *27 | NO. 1 VENTILATION CASE | *28 | CONNECTING ROD SUB-ASSEMBLY |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |  |
N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
| *T1 | 1st: 38 (387, 28) 2nd: Turn 90° |
*T2 | 1st: 61 (622, 45) 2nd: Turn 90° |
