AIR CONDITIONING PANEL INSTALLATION

PROCEDURE

1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (w/o Radio Receiver)




   1. Connect the connector.

   2.

      Install in this Direction

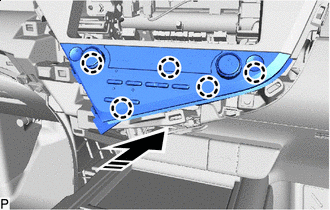

      Engage the 5 claws to install the air conditioning control assembly as shown in the illustration.

2. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY (w/ Radio Receiver)

   Click here

3. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (w/o Radio Receiver)

   Click here

4. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY (w/o Radio Receiver)

   Click here

5. INSTALL NO. 1 METER HOOD CLUSTER (w/o Radio Receiver)

   Click here
