STOP LIGHT SWITCH INSTALLATION

PROCEDURE

INSTALL STOP LIGHT SWITCH ASSEMBLY

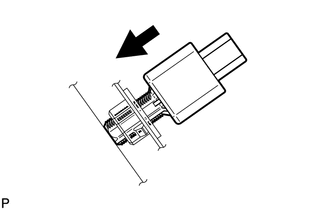

Insert the stop light switch assembly until the threaded sleeve hits the pedal.

Note:
When inserting the stop light switch assembly, support the pedal from behind so that the pedal is not pushed in.
Turn the stop light switch assembly a quarter turn clockwise to install the stop light switch assembly.

1.5 N*m

15 kgf*cm

13 in.*lbf

or less

Note:
When inserting the stop light switch assembly, support the pedal from behind so that the pedal is not pushed in.
Connect the connector.

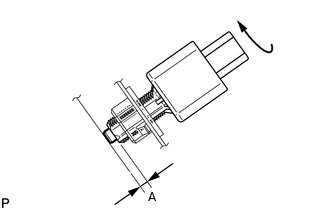

Check the protrusion of the plunger.


Part	Measurement
A	0.5 to 2.4 mm (0.0197 to 0.0945 in.)

If the protrusion is not as specified, recheck switch installation and inspect brake pedal adjustment if necessary.

for LHD

for RHD

Note:

Do not depress or support the brake pedal.
