COMBINATION SWITCH INSPECTION

PROCEDURE

  1. INSPECT COMBINATION SWITCH ASSEMBLY

    1. C341835C02

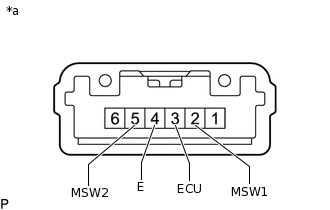

      *a

      Component without harness connected

      (Combination Switch Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Switch Condition

      Specified Condition

      4 (E) - 5 (MSW2)

      EV drive mode switch pushed and held

      Below 10 Ω

      4 (E) - 5 (MSW2)

      EV drive mode switch not pushed

      1 MΩ or higher

      2 (MSW1) - 5 (MSW2)

      SPORT mode switch pushed and held

      Below 10 Ω

      2 (MSW1) - 5 (MSW2)

      SPORT mode switch not pushed

      1 MΩ or higher

      3 (ECU) - 5 (MSW2)

      ECO mode switch pushed and held

      Below 10 Ω

      3 (ECU) - 5 (MSW2)

      ECO mode switch not pushed

      1 MΩ or higher

      If the result is not as specified, replace the combination switch assembly.
