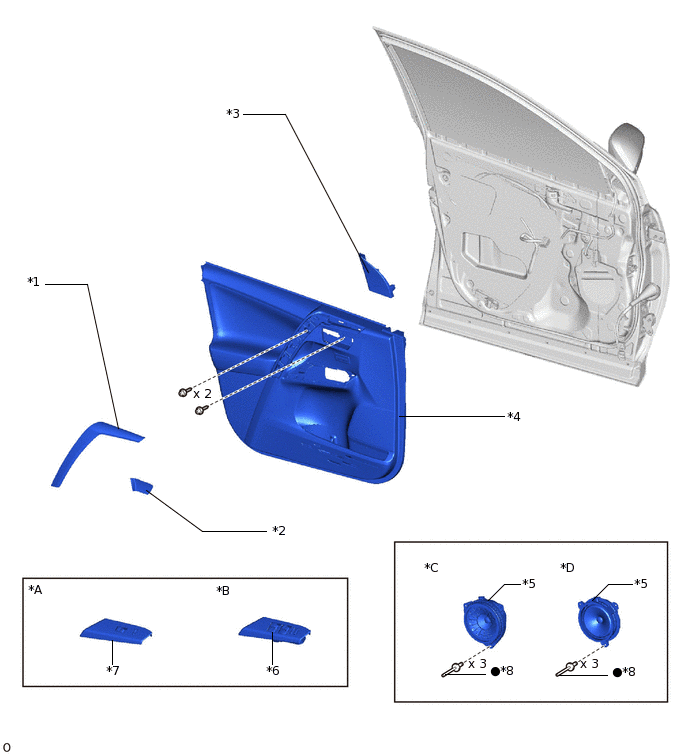

FRONT DOOR SPEAKER COMPONENTS
ILLUSTRATION
*A |
for Passenger Side |
*B |
for Driver Side |
*C |
w/ Woofer |
*D |
w/o Woofer |
*1 |
FRONT DOOR ASSIST GRIP COVER LH |
*2 |
FRONT DOOR INSIDE HANDLE BEZEL PLUG LH |
*3 |
FRONT DOOR LOWER FRAME BRACKET GARNISH LH |
*4 |
FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH |
*5 |
FRONT NO. 1 SPEAKER ASSEMBLY |
*6 |
POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL |
*7 |
POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL |
*8 |
RIVET |
● |
Non-reusable part |
- |
- |
