FRONT SEAT CUSHION HEATER(for Power Seat) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY LH

    1. Set the front seat cushion heater assembly LH on the separate type front seat cushion cover.

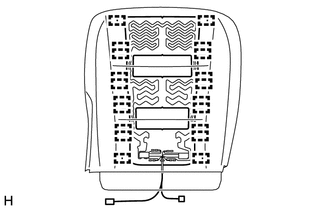

    2. B341142

      Using a tacker, install the front seat cushion heater assembly LH to the separate type front seat cushion cover with 20 new tack pins as shown in the illustration.

      Note:

      Do not substitute other metal parts for tack pins.

  2. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER

    Click hereClick here

  3. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

    Click hereClick here

  4. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

    Click hereClick here

  5. INSTALL FRONT INNER SEAT CUSHION SHIELD LH

    Click hereClick here

  6. INSTALL FRONT SEAT CUSHION SHIELD LH

    Click hereClick here

  7. INSTALL FRONT INNER NO. 1 SEAT CUSHION SHIELD LH

    Click hereClick here

  8. INSTALL FRONT SEAT ASSEMBLY LH

    Click here

  9. INSPECT SEAT HEATER SYSTEM

    Click here
