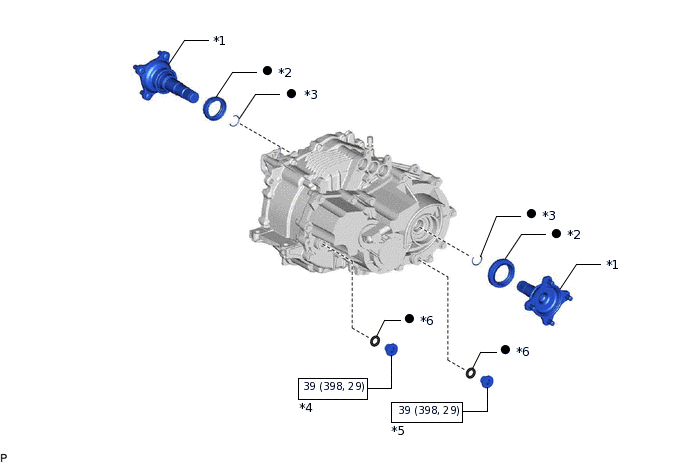

DIFFERENTIAL SIDE GEAR SHAFT COMPONENTS

*1	DIFFERENTIAL SIDE GEAR SHAFT SUB-ASSEMBLY LH	*2	DUST COVER
*3	DIFFERENTIAL SIDE GEAR SHAFT SNAP RING	*4	FILLER PLUG
*5	DRAIN PLUG	*6	GASKET
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part

*1

DIFFERENTIAL SIDE GEAR SHAFT SUB-ASSEMBLY LH

*2

DUST COVER

*3

DIFFERENTIAL SIDE GEAR SHAFT SNAP RING

*4

FILLER PLUG

*5

DRAIN PLUG

*6

GASKET

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
