POWER STEERING SYSTEM

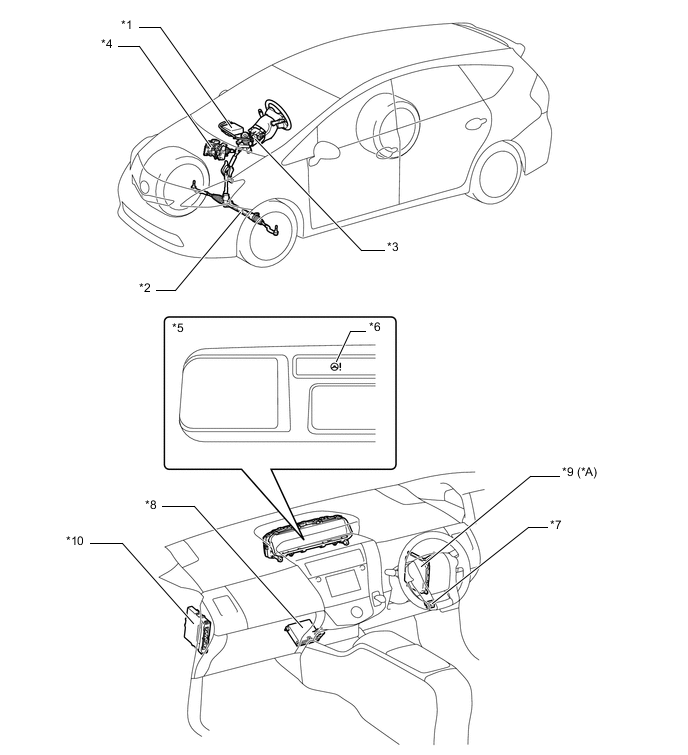

| *A | Models with Intelligent Parking Assist System | - | - |
| *1 | Power Steering ECU Assembly | *2 | Steering Gear Assembly |
| *3 | Steering Column Assembly - Power Steering Motor - Torque Sensor - Rotation Angle Sensor |
*4 | Brake Booster with Master Cylinder Assembly - Skid Control ECU |
| *5 | Combination Meter Sub-assembly | *6 | EPS Warning Light |
| *7 | DLC3 | *8 | Air Conditioning Amplifier Assembly |
| *9 | Parking Assist ECU | *10 | Power Management Control ECU |

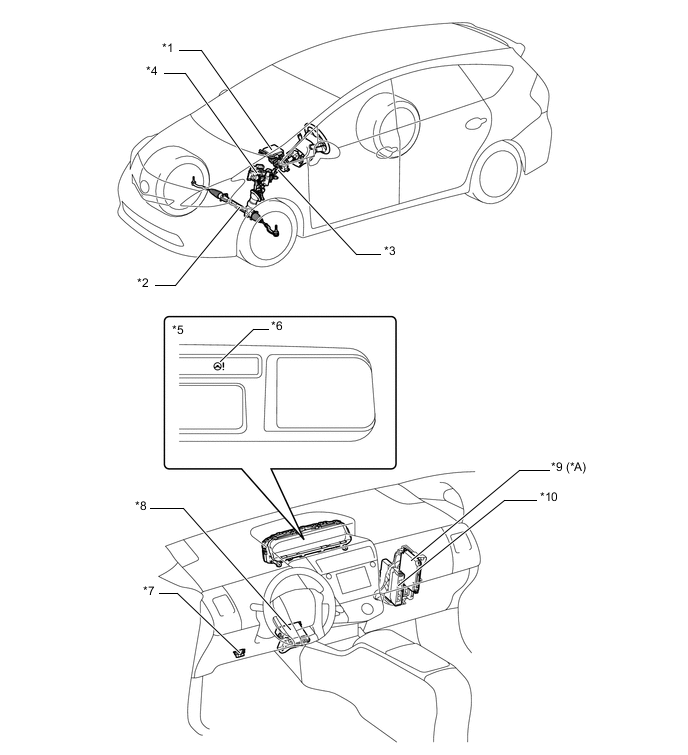

| *A | Models with Intelligent Parking Assist System | - | - |
| *1 | Power Steering ECU Assembly | *2 | Steering Gear Assembly |
| *3 | Steering Column Assembly - Power Steering Motor - Torque Sensor - Rotation Angle Sensor |
*4 | Brake Booster with Master Cylinder Assembly - Skid Control ECU |
| *5 | Combination Meter Sub-assembly | *6 | EPS Warning Light |
| *7 | DLC3 | *8 | Air Conditioning Amplifier Assembly |
| *9 | Parking Assist ECU | *10 | Power Management Control ECU |
