FUEL PUMP ECU REMOVAL

PROCEDURE

1. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

   Click here

2. REMOVE FUEL PUMP CONTROL ECU ASSEMBLY

   1.

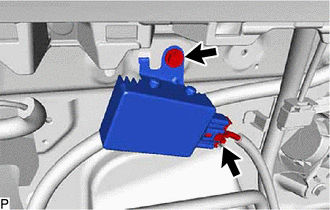

      Remove the connector from the fuel pump control ECU assembly.

      Note:

      Do not reuse the fuel pump control ECU assembly if it has been dropped or subjected to a severe impact.

   2. Remove the bolt and fuel pump control ECU assembly from the body.
