REAR DOOR SPEAKER REMOVAL

CAUTION / NOTICE / HINT

Tip:

Use the same procedure for the RH side and LH side.

PROCEDURE

  1. REMOVE REAR ARMREST ASSEMBLY (w/o Power Window)

    Click hereClick here

  2. REMOVE REAR ARMREST ASSEMBLY (w/ Power Window)

    Click hereClick here

  3. REMOVE REAR DOOR WINDOW REGULATOR HANDLE ASSEMBLY (w/o Power Window)

    Click hereClick here

  4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL (w/ Power Window)

    Click hereClick here

  5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Click hereClick here

  6. REMOVE REAR SPEAKER ASSEMBLY

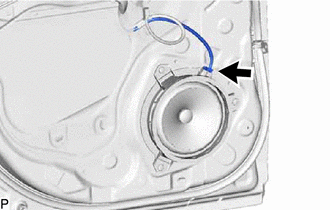

    1. E262560

      Disconnect the connector.

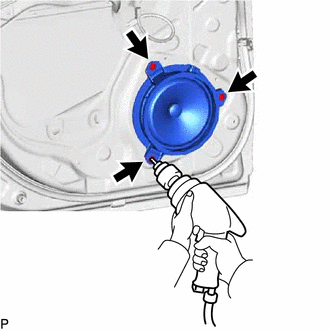

    2. E262561

      Using a drill bit with a diameter of less than 5 mm (0.197 in.), drill out the 3 rivet heads and remove the rear speaker assembly.

      Note:

      • Do not touch the cone part of the speaker.

      • Do not drill the rivet at an angle as this will cause damage to the drill and drill hole. Line up the drill and rivet, and carefully drill out the rivet head.

      • Be careful as the cut rivet will be very hot.

    3. Continue drilling and push out the remaining rivet fragments.

    4. Using a vacuum cleaner, remove the rivet fragments and shavings from the inside of the door.
