OIL PUMP COMPONENTS

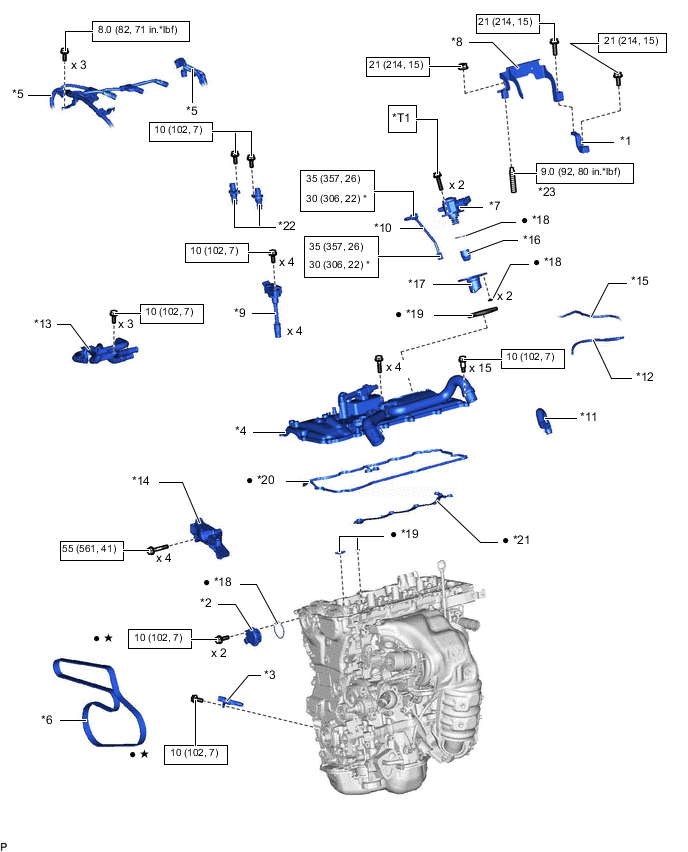

ILLUSTRATION
| *1 | BRACKET | *2 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY |
| *3 | CRANKSHAFT POSITION SENSOR | *4 | CYLINDER HEAD COVER SUB-ASSEMBLY |
| *5 | ENGINE WIRE | *6 | FAN AND GENERATOR V BELT |
| *7 | FUEL PUMP ASSEMBLY | *8 | FUEL PUMP PROTECTOR |
| *9 | IGNITION COIL ASSEMBLY | *10 | NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *11 | NO. 2 PCV HOSE | *12 | NO. 2 VACUUM TRANSMITTING HOSE ASSEMBLY |
| *13 | NO. 2 WATER BY-PASS PIPE | *14 | TRANSVERSE ENGINE MOUNTING BRACKET |
| *15 | VACUUM TRANSMITTING HOSE ASSEMBLY | *16 | FUEL PUMP LIFTER ASSEMBLY |
| *17 | FUEL PUMP LIFTER GUIDE | *18 | O-RING |
| *19 | GASKET | *20 | CYLINDER HEAD COVER GASKET |
| *21 | NO. 2 CYLINDER HEAD COVER GASKET | *22 | CAMSHAFT POSITION SENSOR |
| *23 | STUD BOLT | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with union nut wrench |
| ● | Non-reusable part | ★ | Precoated part |
| *T1 | 1st:15 (153, 11) 2nd: 30 (306, 22) |
- | - |
ILLUSTRATION
| *1 | CRANKSHAFT PULLEY ASSEMBLY | *2 | IDLER PULLEY SUB-ASSEMBLY |
| *3 | TIMING CHAIN COVER ASSEMBLY | *4 | TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL |
| *5 | V-RIBBED BELT TENSIONER ASSEMBLY | *6 | OIL PUMP GASKET |
| *7 | OIL HOLE COVER GASKET | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
MP grease No. 2 |  |
Do not apply lubricants to the threads parts |
