FRONT LOWER SUSPENSION ARM INSTALLATION

CAUTION / NOTICE / HINT

Tip:
  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. TEMPORARILY INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

    1. Temporarily install the front lower No. 1 suspension arm sub-assembly LH to the front suspension crossmember sub-assembly with the 2 bolts and nut.

      Note:

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut fixed in place.

  2. INSTALL FRONT SUSPENSION MEMBER

  3. TIGHTEN FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

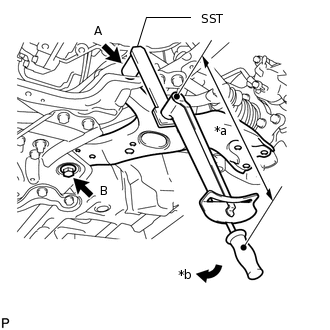

    1. C279176C03

      *a

      Torque Wrench Fulcrum Length

      *b

      Turn

      Using SST, tighten bolt A.

      09961-01270

      Specified tightening torque

      233 N*m

      2376 kgf*cm

      172 ft.*lbf

      Tip:
      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Click hereClick hereClick hereClick here

      • When using SST (fulcrum length of 200 mm (7.874 in.)) + torque wrench (fulcrum length of 1055 mm (41.535 in.)): 195.9 N*m (1998 kgf*cm, 144 ft.*lbf)

    2. Tighten bolt B.

      214 N*m

      2182 kgf*cm

      158 ft.*lbf

      Note:

      Since a stopper nut is used, tighten the bolt.

  4. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
