FUEL LID LOCK CONTROL CABLE ASSEMBLY(for RHD) INSTALLATION

PROCEDURE

1. INSTALL FUEL FILLER OPENING LID LOCK RETAINER

   1.

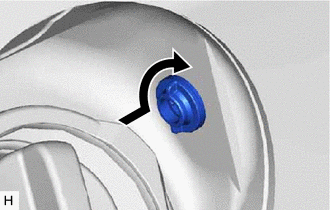

      Install the fuel filler opening lid lock retainer and turn the fuel filler opening lid lock retainer clockwise.

2. INSTALL FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

   1. Attach the 12 clamps to install the fuel lid lock control cable sub-assembly.



   2.

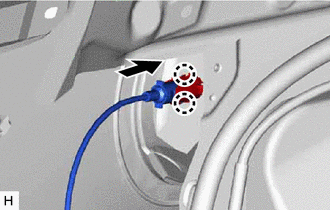

      Attach the 2 claws to install the fuel lid lock control cable sub-assembly to the fuel filler opening lid lock retainer.

   3. Install the floor carpet.

3. INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

   1. Connect the fuel lid lock control cable sub-assembly to install the fuel lid lock open lever sub-assembly.

   2. Attach the guide.

   3. Install the fuel lid lock open lever sub-assembly with the bolt.

      8.0 N*m

      82 kgf*cm

      71 in.*lbf

4. INSTALL LOWER CENTER PILLAR GARNISH LH

   Click here

5. INSTALL LOWER CENTER PILLAR GARNISH RH

   Tip:

   Use the same procedure as for the LH side.

6. INSTALL OUTER LAP BELT ANCHOR COVER (for LH Side)

   Click hereClick here

7. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

   Click here

8. INSTALL DECK TRIM SERVICE HOLE COVER

   Click here

9. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

   Click here

10. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

    Tip:

    Use the same procedure as for the LH side.

11. INSTALL REAR DOOR SCUFF PLATE LH

    Click here

12. INSTALL REAR DOOR SCUFF PLATE RH

    Tip:

    Use the same procedure as for the LH side.

13. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

14. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Tip:

    Use the same procedure as for the LH side.

15. INSTALL FRONT DOOR SCUFF PLATE LH

    Click here

16. INSTALL FRONT DOOR SCUFF PLATE RH

    Tip:

    Use the same procedure as for the LH side.

17. INSTALL REAR SEAT ASSEMBLY

    1. for LH Side:

       Click here

    2. for RH Side:

       Tip:

       Use the same procedure as for the LH side.

18. INSTALL REAR FLOOR FINISH PLATE (w/o Spare Tire, for Compact Spare Tire)

    Click here

19. INSTALL REAR DECK TRIM COVER (for Full Size Spare Tire)

    Click here

20. INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

    Click here

21. INSTALL DECK FLOOR BOX LH

    Click here

22. INSTALL DECK TRIM SIDE COVER BASE LH

    Click here

23. INSTALL REAR NO. 3 FLOOR BOARD

    Click here

24. INSTALL DECK BOARD ASSEMBLY

    Click here

25. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Click here

26. INSTALL PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/ Partition Net)

    Click here

27. INSTALL PARKING BRAKE LEVER SUB-ASSEMBLY

    Click here

28. INSTALL FRONT SEAT ASSEMBLY LH

    1. for Manual Seat:

       Click here

    2. for Power Seat:

       Click here

29. INSTALL FRONT SEAT ASSEMBLY RH

    Tip:

    Use the same procedure as for the LH side.
