REAR SEAT CUSHION HEATER COMPONENTS

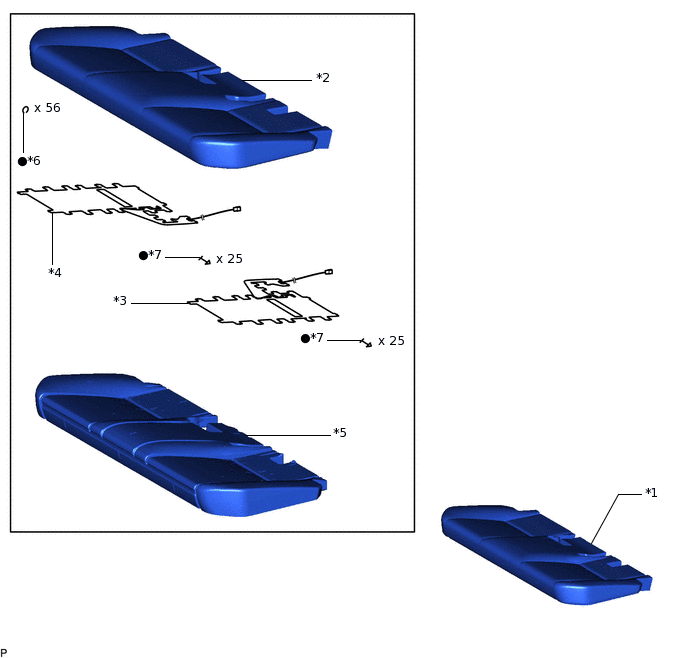

ILLUSTRATION

B433036C01

*1

BENCH TYPE REAR SEAT CUSHION ASSEMBLY

*2

BENCH TYPE REAR SEAT CUSHION COVER

*3

REAR SEAT CUSHION HEATER ASSEMBLY LH

*4

REAR SEAT CUSHION HEATER ASSEMBLY RH

*5

BENCH TYPE REAR CUSHION PAD

*6

HOG RING

*7

TACK PIN

-

-

●

Non-reusable part

-

-
