FUEL SYSTEM


  1. CONSTRUCTION


    1. Models without Gasoline Particulate Filter (GPF) System


      1. A 12-hole long nozzle type fuel injector assembly (for port injection) is used. As a result, low fuel consumption and low emissions are achieved by optimizing the intake airflow inside the intake port.

    2. Models with Gasoline Particulate Filter (GPF) System


      1. A 10-hole long nozzle type fuel injector assembly (for port injection) is used. As a result, low fuel consumption and low emissions are achieved by optimizing the intake airflow inside the intake port.

      2. The injection volume dynamic range has been expanded and superior high-temperature characteristics have been achieved by optimizing movable parts and magnetic circuits. As a result, fuel economy and emission performance have also been improved.

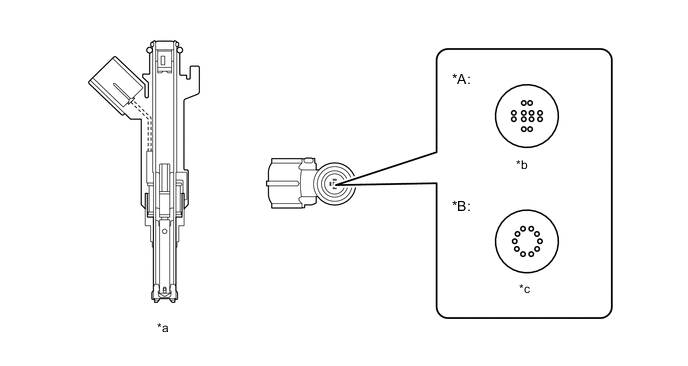

        B008G2CC01
        *A Models without Gasoline Particulate Filter (GPF) System *B Models with Gasoline Particulate Filter (GPF) System
        *a Port Fuel Injector Assembly Cross Section *b 12-hole Long Nozzle Type Injection Hole
        *c 10-hole High Atomization Type Injection Hole - -
