LANE DEPARTURE ALERT SYSTEM


  1. OPERATION


    1. The combination meter assembly illuminates the indicators or displays an indicator on the multi-information display, and sounds a buzzer (which is built into the combination meter assembly) in accordance with the respective condition.

      Lane Departure Alert System On and Radar Cruise Control System Off
      Condition Multi-information Display* LDA Indicator Buzzer

      • Approximately 50 km/h (32 mph) or more

      • Lane Markers Detected

      		 A01O6ZT Illuminates -

      • Approximately 50 km/h (32 mph) or more

      • One Lane Marker Detected

      		 A01O756 Illuminates -

      • Approximately 50 km/h (32 mph) or more

      • Lane Deviation Warning Operating

      		 A01O6Z6

      The lane marker icons blink

      		 Illuminates Sounds 2 seconds maximum

      • Approximately 50 km/h (32 mph) or more

      • Lane Markers Not Detected

      		 A01O7HS Illuminates -
      Below Approximately 50 km/h (32 mph)

      *: These illustrations are examples.

      Lane Departure Alert System On and Radar Cruise Control System On
      Condition Multi-information Display* LDA Indicator Buzzer

      • Approximately 50 km/h (32 mph) or more

      • Lane Markers Detected

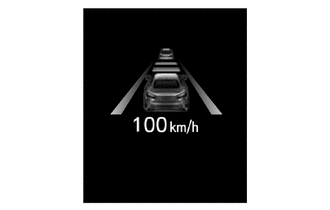

      		 A01O6WZ Illuminates -

      • Approximately 50 km/h (32 mph) or more

      • One Lane Marker Detected

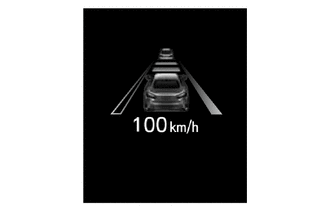

      		 A01O7EM Illuminates -

      • Approximately 50 km/h (32 mph) or more

      • Lane Markers Not Detected

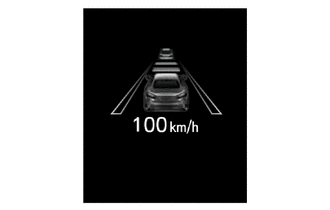

      		 A01O7C0 Illuminates -

      • Approximately 50 km/h (32 mph) or more

      • Lane Markers Detected

      • Lane Deviation Warning Operating

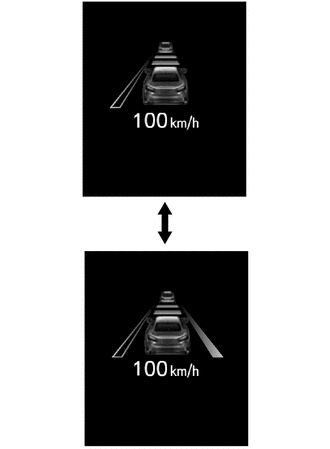

      		 A01O7EL

      The lane marker icons blink

      		 Illuminates Sounds 2 seconds maximum

      *: These illustrations are examples.

      Warning Messages
      Condition Multi-information Display LDA Indicator Buzzer

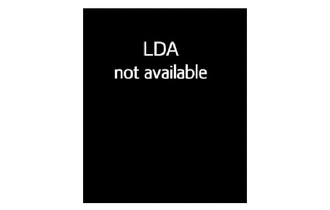

      Temperature of Lane Departure Warning Camera is Abnormal A01O7CK - Sounds
      System Malfunction A01O7EO - Sounds

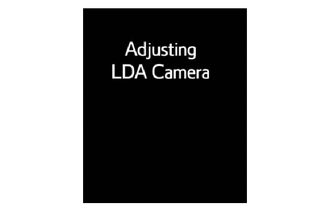

      Lane Departure Warning Camera Angle Being Adjusted A01O6XG - -

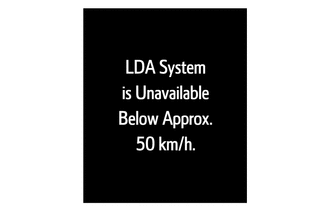

      LDA switch is turned on at approximately 50 km/h (32mph) or lower A01O7EE

      Displayed for 6 seconds

      		 Illuminates -

      Vehicle decelerates to below operating speed


      • Displayed once after the power switch is turned on (IG)
