REAR SEAT CUSHION HEATER INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

  1. INSTALL REAR SEAT CUSHION HEATER ASSEMBLY LH

    1. Set the rear seat cushion heater assembly LH on the bench type rear seat cushion cover.

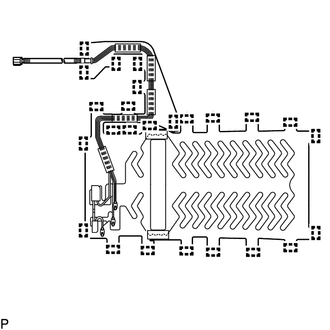

    2. B429535

      Using a tacker, install the rear seat cushion heater assembly LH to the bench type rear seat cushion cover with 25 new tack pins as shown in the illustration.

      Note:

      Do not substitute other metal parts for tack pins.

  2. INSTALL REAR SEAT CUSHION HEATER ASSEMBLY RH

    1. Set the rear seat cushion heater assembly RH on the bench type rear seat cushion cover.

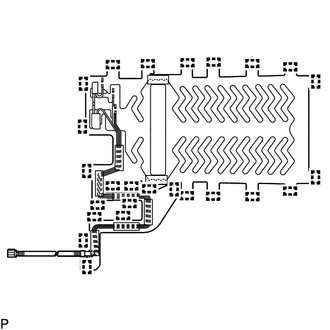

    2. B429536

      Using a tacker, install the rear seat cushion heater assembly RH to the bench type rear seat cushion cover with 25 new tack pins as shown in the illustration.

      Note:

      Do not substitute other metal parts for tack pins.

  3. INSTALL BENCH TYPE REAR SEAT CUSHION COVER

    Click here

  4. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

    Click here
