FRONT PILLAR UPPER COVER REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE FRONT PILLAR UPPER COVER SUB-ASSEMBLY LH

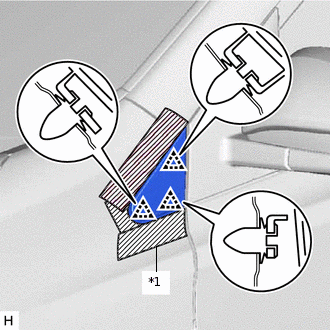

    1. B338448C01

      *1

      Protective Tape

      Put protective tape around the front pillar upper cover sub-assembly LH.

    2. Detach the 3 clips and remove the front pillar upper cover sub-assembly LH.
