ENGINE COOLANT TEMPERATURE SENSOR COMPONENTS

ILLUSTRATION

A309609C01

*A

for Full Cover Type

*B

for Half Cover Type

*1

NO. 1 ENGINE UNDER COVER

-

-

ILLUSTRATION

A309611C01

*A

w/ No. 1 Engine Cover

-

-

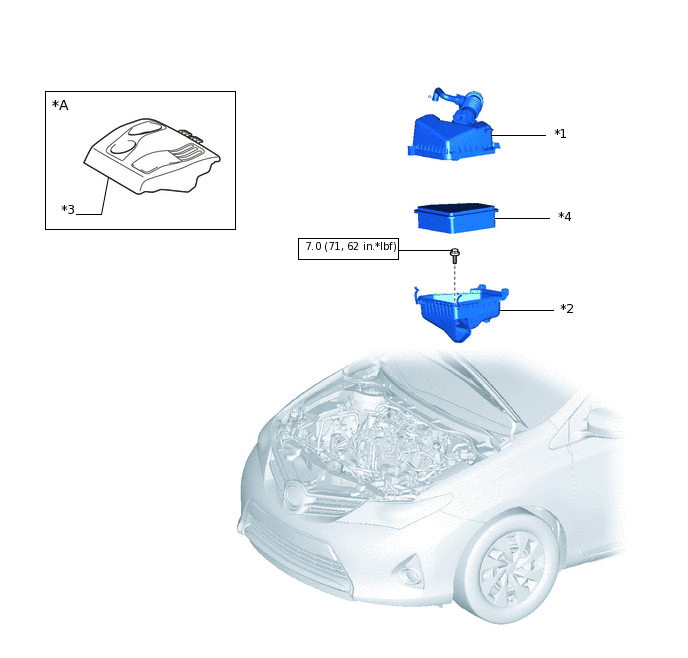

*1

AIR CLEANER CAP SUB-ASSEMBLY

*2

AIR CLEANER CASE SUB-ASSEMBLY

*3

NO. 1 ENGINE COVER

*4

AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
V100146

Component without harness connected

-

-

ILLUSTRATION

A287006C01

*1

ENGINE COOLANT TEMPERATURE SENSOR

*2

GASKET
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
