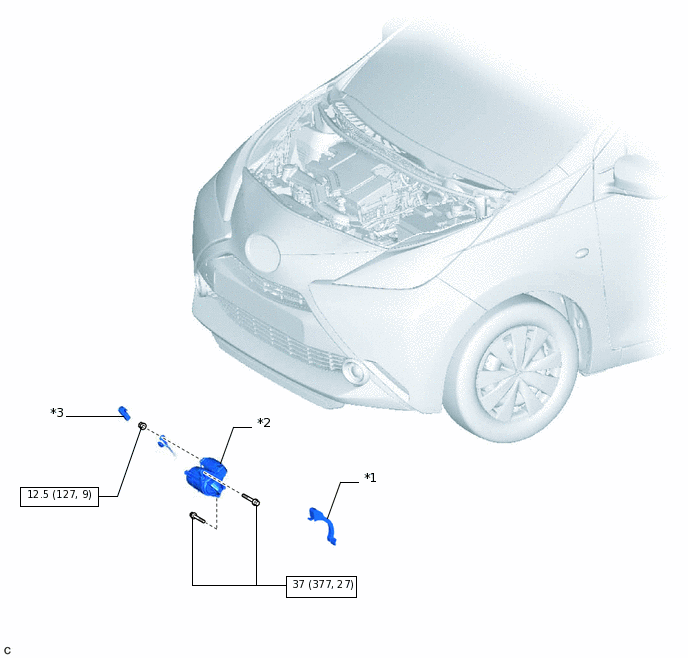

STARTER(w/ Stop And Start System) COMPONENTS

ILLUSTRATION

A322631C01

*1

FLYWHEEL HOUSING SIDE COVER

*2

STARTER ASSEMBLY

*3

TERMINAL CAP

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
