FRONT EVAPORATOR TEMPERATURE SENSOR INSPECTION

PROCEDURE


  1. INSPECT EVAPORATOR TEMPERATURE SENSOR (NO. 1 COOLER THERMISTOR)


    1. Measure the resistance according to the value(s) in the table below.

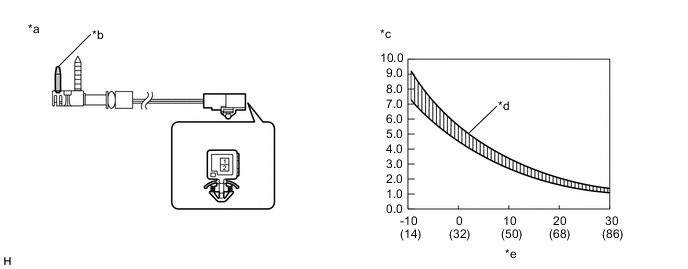

      A005CH8E03
      Text in Illustration
      *a

      Component without harness connected

      (Evaporator Temperature Sensor (No. 1 Cooler Thermistor))

      		 *b Sensing Portion
      *c Resistance (kΩ) *d Allowable Range
      *e Temperature (°C (°F)) - -
      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - 2 -10°C (14°F) 7.30 to 9.10 kΩ
      1 - 2 -5°C (23°F) 5.65 to 6.95 kΩ
      1 - 2 0°C (32°F) 4.40 to 5.35 kΩ
      1 - 2 5°C (41°F) 3.40 to 4.15 kΩ
      1 - 2 10°C (50°F) 2.70 to 3.25 kΩ
      1 - 2 15°C (59°F) 2.14 to 2.58 kΩ
      1 - 2 20°C (68°F) 1.71 to 2.05 kΩ
      1 - 2 25°C (77°F) 1.38 to 1.64 kΩ
      1 - 2 30°C (86°F) 1.11 to 1.32 kΩ

      Note


      • Hold the sensor only by its connector. Touching the sensor may change the resistance value.

      • When measuring, the sensor temperature must be the same as the ambient temperature.

      Tech Tips

      As the temperature increases, the resistance decreases (see the graph).

      If the resistance is not as specified, replace the evaporator temperature sensor (No. 1 cooler thermistor).
