REAR SEAT CUSHION HEATER INSPECTION

PROCEDURE

  1. INSPECT REAR SEAT CUSHION HEATER ASSEMBLY LH

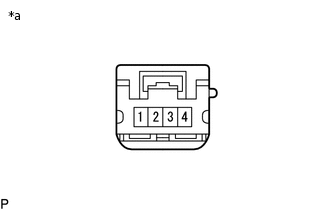

    B429537C01

    *a

    Component without harness connected

    (Rear Seat Cushion Heater Assembly LH)

    1. Check the rear seat cushion heater assembly LH.

      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Condition

        Specified Condition

        1 - 2

        Seat cushion heater temperature 20°C (68°F)

        3.79 to 4.53 Ω

        1 - 3

        Below 1 Ω

        1 - 4

        3.89 to 4.65 Ω

        2 - 3

        3.79 to 4.53 Ω

        3 - 4

        3.89 to 4.65 Ω

        If the result is not as specified, replace the rear seat cushion heater assembly LH.

  2. INSPECT REAR SEAT CUSHION HEATER ASSEMBLY RH

    B429537C01

    *a

    Component without harness connected

    (Rear Seat Cushion Heater Assembly RH)

    1. Check the rear seat cushion heater assembly RH.

      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Condition

        Specified Condition

        1 - 2

        Seat cushion heater temperature 20°C (68°F)

        3.79 to 4.53 Ω

        1 - 3

        Below 1 Ω

        1 - 4

        3.89 to 4.65 Ω

        2 - 3

        3.79 to 4.53 Ω

        3 - 4

        3.89 to 4.65 Ω

        If the result is not as specified, replace the rear seat cushion heater assembly RH.
